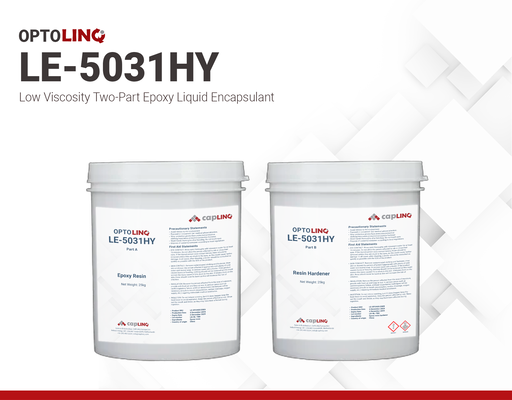

OPTOLINQ LE-5031HY | Two part epoxy resin
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Low viscosity
- High transparency
- Excellent solvent, aging, anti yellowing, and thermal resistance
Product Description
OPTOLINQ LE-5031HY is a low-viscosity, two-part, halogen-free epoxy resin with high transparency and a high-gloss finish. It offers robust stability in acidic and alkaline environments, good anti-aging properties, high durability even under extreme temperatures, and superior scratch and abrasion resistance. For specific color requirements, LE-5031HY can be customized using color or opaque pastes. The LE-5031HY is the anti-yellowing resistant version of LE-5031
OPTOLINQ LE-5031HY is a suitable coating for metal and polymer surfaces, providing a polished finish and excellent surface integrity. It is the preferred choice for coating solar cell panels, transparent potting of electronic components for insulation and moisture-proofing, high-voltage coil potting, and room temperature potting of capacitors and transformers. LE-5031HY complies with ROHS and REACH standards, offering a reliable solution for encapsulation and sealing applications.
Cure Schedule
- 24h @ 25°C
- 2-4h @ under 60C°
- 1h @ 100°C
OPTOLINQ LE-5031HY
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
Electrical Properties
Mechanical Properties
Chemical Properties
Physical Properties
Additional Information
Anti-yellowing Performance
The following optical images of cured LE-5031HY samples (10 and 30 g) demonstrate its anti-yellowing capability under two distinct conditions: exposure to 70 °C for 18 hours and to 85 °C at 85% RH for 24 hours.
Recommended Curing Conditions
Cure at 25 °C for 24 h or at 100 °C for 1 h.
These guidelines offer recommended curing parameters. Define the exact curing parameters to align with your product specifications.
Precautions for Use
- Follow the recommended mixing ratio (3:1) precisely.
- Make sure to stir the mixture thoroughly. Use the mixture as soon as possible.
- When the relative humidity >85%, the solid surface can absorb moisture from the air, producing a white fog. Room temperature curing is not advised when the relative humidity is greater than 85%. Instead, consider heated curing as a recommended alternative.
- After each use, seal the container tightly to prevent moisture from infiltrating and compromising the product's quality.
Storage and Handling
Store in a ventilated, dry, and clean environment. Keep away from fire and heat sources. It is strictly forbidden to store in outdoor environments. At proper storage conditions, Part A and Part B both have a shelf life of 180 days. Shelf life can be extended by using cold storage.
