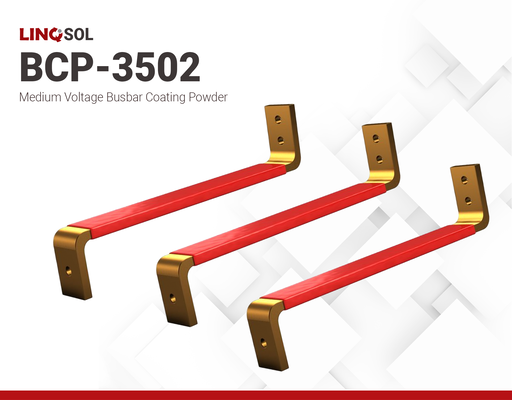

BCP-3502 | 130℃ RTI Busbar Coating Powder
Harmonization Code : 3907.30.20 | Epoxide resins of a kind used for coating in powder form
Main features
- Black, red halogen-free epoxy coating powder
- Flexible use for low and medium voltage systems
- High heat resistance (RTI 130 °C) with UL94 V-0 rating
Product Description
LINQSOL BCP-3502 is a halogen-free epoxy powder coating engineered for superior electrical insulation in busbar systems. It offers rapid build-up and excellent coating uniformity across a broad thickness range, from 0.1 mm to 2.0 mm, making it a versatile solution for various electrical insulation needs. LINQSOL BCP-3502 is available in different colors. Contact us for more information.
Product Key Features
- High Thermal Endurance — Meets UL 746B Relative Thermal Index (RTI) of 130 °C for reliable performance at elevated temperatures.
- Superior Dielectric Strength — Provides exceptional electrical insulation properties.
- Flame Retardant — Achieves a UL94 V0 rating for enhanced safety.
- Can be applied using electrostatic spray or fluidized bed methods.
Product Key Applications
- Low-voltage busbar systems up to 600 V.
- Medium-voltage busbar applications up to 38 kV.
LINQ BCP-3502
1. Select Package Type
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks Shipping in 12 weeks Shipping in 12 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
Particle size (D50)Particle size (D50)
45-60 umThermal Properties
UL 94 RatingUL 94 Rating
V-0Electrical Properties
Dielectric StrengthDielectric Strength
45 kV/mmChemical Properties
Water AbsorptionWater Absorption
0.3 %
