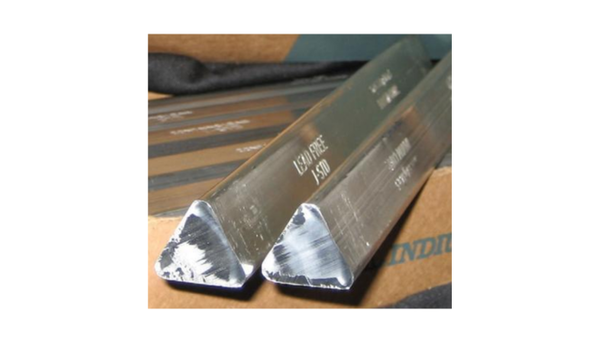

Indium SAC305 Solder Bar
Harmonization Code : 8001.20 | Unwrought tin: Tin alloys
Main features
- Lead-Free SAC305 Bar Solder
- Lot-Specific Alloy Composition Certification
- ASTM B32 and J-STD-006 Compliance
Product Description
Indium Corporation SAC305 Bar Solder is an industry-standard lead-free solder alloy supplied in extruded bar form for wave, fountain, and dip soldering processes. Indium Corporation analyzes each alloy batch for metallic composition and impurities, supporting controlled material quality and lot-specific documentation. Pb-free ingots use a distinct physical shape to help reduce the risk of accidental mixing with lead-containing solder. The bar solder meets the applicable requirements of ASTM B32, J-STD-006, and JIS Z 3282. :contentReference[oaicite:0]{index=0}
Key features
- Industry-standard lead-free alloy: SAC305 is available as part of Indium Corporation’s bar solder portfolio for electronics soldering processes.
- Controlled alloy quality: Each production batch is analyzed for metallic composition and impurities, with Certificates of Compliance or Analysis available upon request.
- Standards compliance: Bar solder meets the applicable requirements of ASTM B32, J-STD-006, and JIS Z 3282.
Applications / Suitable for
- Wave soldering
- Fountain soldering
- Dip soldering
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Supply, packaging, storage, and quality-control information for SAC305 bar solder. :contentReference[oaicite:1]{index=1}
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Product form | Extruded solder bar | — | Lead-free SAC305 alloy |
| Standard packaging | 25 | lb/box | Standard bar-solder ingot packaging |
| Shelf life | Indefinite | — | When stored in a dry, non-corrosive location |
| Alloy verification | Batch analyzed | — | Metallic composition and impurities analyzed for each batch |
| Applicable material standards | ASTM B32; J-STD-006; JIS Z 3282 | — | Bar solder complies with the applicable requirements |
