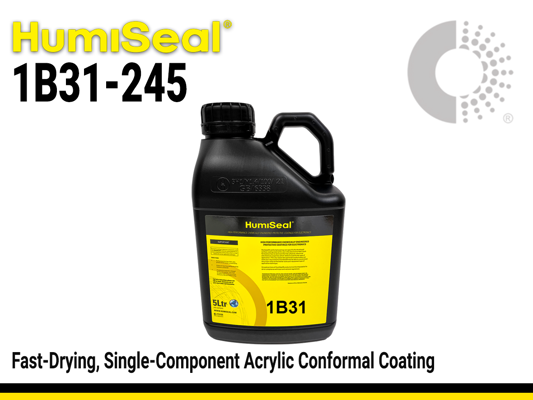

HumiSeal 1B31 245 Acrylic Conformal Coating
Harmonization Code : 3906909090 | Acrylic polymers in primary form Others>Others
Main features
- Single‑component acrylic formulation
- Easily repairable
- MIL‑I‑46058C, AR qualified
Product Description
HumiSeal 1B31-245 is a fast air‑drying, single‑component acrylic conformal coating provides excellent moisture and environmental protection for printed circuit assemblies. The cured film offers outstanding flexibility, is easily repairable, and fluoresces under UV light for simple inspection. HumiSeal 1B31-245 is qualified to MIL‑I‑46058C, AR.
Product Key Features
- Easily repairable to support rework and maintenance
- UV‑fluorescing for easy inspection
- MIL‑I‑46058C, AR qualified
Applications
- Protection of printed circuit boards (PCBs) in industrial, automotive, consumer, and aerospace electronics
HUMISEAL 1B31245
1. Select Package Size
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 6 weeks
Shipping in 6 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
Density (g)Density (g)
0.90 g/cm3Film ThicknessFilm Thickness
-65 - 25 µmPot LifePot Life
12 monthsSolidsSolids
35 %Physical Properties
ViscosityViscosity
40 mPa.sYoung's modulusYoung's modulus
8.687394 MPaThermal Properties
Flash PointFlash Point
-1 °CGlass Transition Temperature (Tg)Glass Transition Temperature (Tg)
14 °COperating TemperatureOperating Temperature
-65 - 125 °CElectrical Properties
Breakdown VoltageBreakdown Voltage
7500 V
