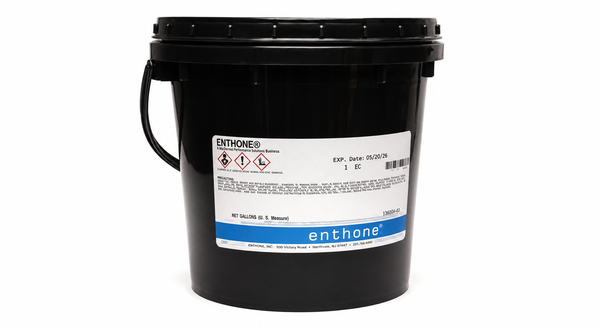

ENTHONE AD2002
Harmonization Code : 3403.19 | Lubricating Preparations (With 70% or More Petroleum Oils) For Automotive and Other Uses
Main features
- Spray-Application Viscosity Control
- Air-Pressure and Orifice Adjustment
- Extended Catalyzed-Ink Pot Life
Product Description
ENTHONE AD2002 Thinner is a process additive used to prepare ENTHONE M-Series and 50-Series epoxy marking inks for spray application. It is added after the catalyst induction period, with the amount adjusted to spray-unit air pressure and orifice. The M-Series guide specifies 25 to 40% by volume; the 50-Series guide allows 25 to 50% by volume. AD2002 extends the catalyzed ink pot life considerably and may also be used for localized equipment cleaning before the ink dries or partially cures.
Key features
- Spray-Application Thinning: AD2002 adjusts catalyzed ENTHONE inks for spray equipment and atomization conditions.
- Ink-Specific Addition Ranges: Addition is 25 to 40% by volume for M-Series and 25 to 50% for 50-Series.
- Extended Pot Life: Thinner addition substantially lengthens the catalyzed ink working period.
Applications / Suitable for
- ENTHONE M-Series spray application
- ENTHONE 50-Series spray application
- Localized marking-equipment cleaning before partial cure
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
As-supplied and spray-processing data for AD2002. Addition ranges depend on the selected ENTHONE ink family and spray equipment.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Physical state | Liquid | - | As supplied |
| M-Series addition | 25 to 40 | vol% | After induction; adjust for spray air pressure and orifice |
| 50-Series addition | 25 to 50 | vol% | After induction; adjust for spray air pressure and orifice |
| Relative density | 0.901 | - | As-supplied measurement |
| Storage temperature | 5 to 40 | deg C | As-supplied condition |
