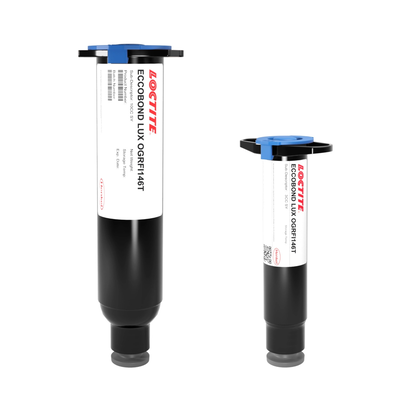

LOCTITE ECCOBOND LUX OGRFI146T

Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other

LOCTITE ECCOBOND LUX OGRFI146T

Main features

  • Low refractive index
  • Photocurable
  • Cures in shadowed areas

Product Description

LOCTITE ECCOBOND LUX OGRFI146T photocurable adhesive is formulated to enhance productivity in the assembly of optical, fiber optic, and optoelectronic devices. It is an optical grade, clear acrylate with a low refractive index.

LOCTITE ECCOBOND LUX OGRFI146T contains a secondary thermal cure mechanism for applications that contain shadowed areas where light is unable to penetrate. The secondary thermal cure can be done in a conventional box or convection conveyor ovens.

UV Cure

  • 500 mW/cm² for 8 seconds
Product Family

ECCOBOND LUX OGRFI146T

1. Select Package Type
Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Product availability
US Shipping in 18 days
CA Shipping in 12 weeks
EU Shipping in 40 days
TDS, SDS & Technical Documents

Technical Specifications

General Properties
Refractive indexRefractive index
1.45
Work life @25°CWork life @25°C
2184 hours
Thermal Properties
Glass Transition Temperature (Tg)Glass Transition Temperature (Tg)
188 °C
Chemical Properties
Water AbsorptionWater Absorption
1.5 %
Physical Properties
ViscosityViscosity
1,250 mPa.s
