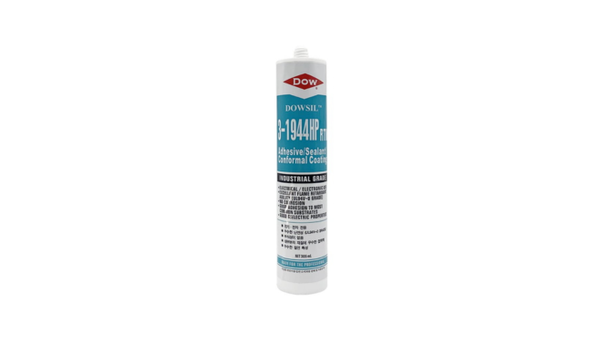

DOWSIL™ 3-1944 HP RTV Coating
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- One-Part, Solventless Silicone Coating
- 7-Minute Tack-Free Time
- Integrated UV Indicator
Product Description
DOWSIL™ 3-1944 HP RTV Coating is a one-part, translucent polydimethylsiloxane coating for localized protection and thin-section encapsulation in electronic assemblies. The solventless material cures through exposure to atmospheric moisture at room temperature, with optional mild heat acceleration at temperatures up to 60°C. Its 53,000 mPa·s viscosity supports controlled flow and needle dispensing, while the cured coating forms a soft, low-stress elastomer. An integrated UV indicator supports visual or automated inspection, and the coating carries a UL 94 V-0 flammability classification under UL 746C.
Key features
- One-part moisture cure: Requires no mixing and cures at room temperature through exposure to atmospheric moisture, with optional mild heat acceleration.
- Soft, low-stress elastomer: Cures to a translucent silicone elastomer with a typical hardness of 36 Shore A.
- UV inspection and flame resistance: Contains a UV indicator for visual or automated inspection and is classified UL 94 V-0 under UL 746C.
Applications / Suitable for
- Pin and solder-joint coverage
- Thin-section encapsulation
- Spot protection of pins and other devices
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical as-supplied and processing properties. Values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Number of components | One | — | As supplied; no mixing required |
| Appearance | Translucent | — | CTM 0176 |
| Viscosity | 53,000 | cP | CTM 0050; equivalent to 53,000 mPa·s or 53 Pa·s |
| Tack-free time | 7 | minutes | CTM 0098; at 25°C; tack-free time does not indicate full cure |
| Shelf life | 12 | months | At 25°C; observe the Use Before date on the product label and protect opened material from moisture |
After-processing / final-state properties
Typical cured-material properties and product-specific flammability classification. Values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Specific gravity | 1 | — | CTM 0097; cured material |
| Hardness | 36 | Shore A | CTM 0099; cured material |
| Flammability classification | 94 V-0 | — | UL 746C; recognition is subject to applicable coating-thickness and substrate requirements |
