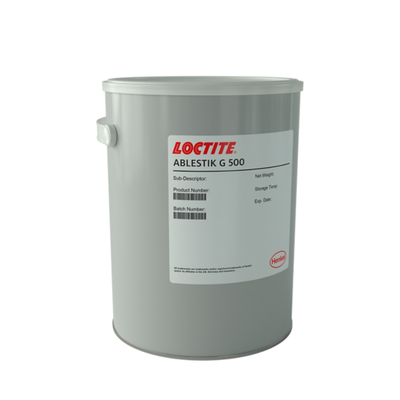

LOCTITE ABLESTIK G500
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other

Main features
- One component
- General purpose
- Sag resistant
Product Description
LOCTITE ABLESTIK G 500 is a low viscosity, general purpose epoxy adhesive and sealant that cures to a high gloss finish.
LOCTITE ABLESTIK G 500 is non abrasive with excellent dielectric properties and resistance to heat and water. This heat curable adhesive is typically used for the insulation of copper and other materials and to attach leads to coils. It binds well on copper, rigid plastics and other metals.
Cure Schedule
- 60 minutes @ 125°C or
- 20 minutes @ 150°C or
- 5 minutes @ 175°C
TDS, SDS & Technical Documents
Technical Specifications
General Properties
DensityDensity
1450 kg/m3Electrical Properties
Dielectric StrengthDielectric Strength
15 kV/mmVolume ResistivityVolume Resistivity
200000000000000 Ohms⋅cm
