LOCTITE ABLESTIK 2106T
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Shore D 72 within 60 Minutes
- 410 V/mil Dielectric Strength
- Metal-to-Masonry Multi-Substrate Bonding
Product Description

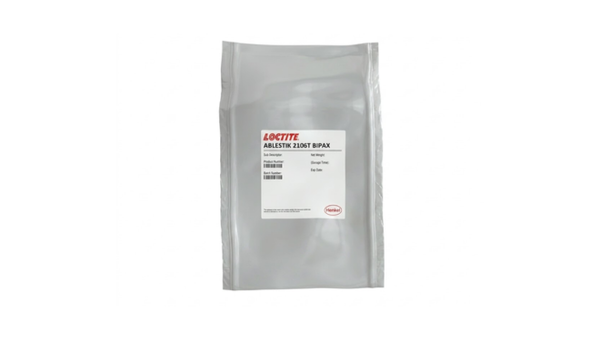

LOCTITE ABLESTIK 2106T BIPAX is a two-component, solvent-free epoxy adhesive designed for high-strength structural bonding applications. Supplied as a light yellow to orange liquid at a 110:93 resin-to-hardener mix ratio in a BIPAX mixing-dispenser package, it cures at room temperature in 4 to 6 hours or with an accelerated 1-hour cure at 65°C, developing significant handling strength within an hour of mixing. The adhesive is electrically insulating with low shrinkage and chemical resistance, and bonds a wide range of substrates including metals, phenolic plastics, polyester, glass, glass fabrics, ceramics, rubbers, and masonry materials. It supports continuous service from -60°C to 115°C, with intermittent exposure tolerance up to 150°C.
Key features
- Fast property development: Reaches Shore D 72 hardness within 60 minutes of mixing at 25°C.
- Electrically insulating: Volume resistivity of 5×10¹¹ ohm-cm at 25°C.
- Broad substrate compatibility: Bonds metals, plastics, glass, ceramics, rubbers, and masonry materials.
Applications / Suitable for: High-strength structural assembly bonding across metals, plastics, glass, ceramics, and masonry/construction materials.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical properties of the uncured, mixed material prior to cure. Note the short pot life — use promptly after mixing.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mix ratio (Resin : Hardener) | 110 : 93 | by weight | — |
| Viscosity, mixed | 3,600 | mPa·s (cP) | @ 25°C |
| Specific gravity, mixed | 1.22 | — | Mixed material |
| Pot life | 5 | minutes | Mixed material; high exotherm, use immediately |
After-processing / final-state properties
Typical properties of the fully cured material after the recommended cure schedule.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Hardness, 60 minutes | 72 | Shore D | @ 25°C, 60 min after mixing |
| Glass transition temperature (Tg) | 25 | °C | Cured material |
| Volume resistivity | 5×10¹¹ | ohm·cm | @ 25°C |
| Dielectric strength | 410 | volts/mil | Cured material |
| Lap shear strength, Al to Al | 1.37 (200) | N/mm² (psi) | Cured material |
