TEROSON MS 5570
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- One-Component Moisture-Cure Polymer
- Fast Skin-Over Processing
- Elastic Structural Bonding
Product Description

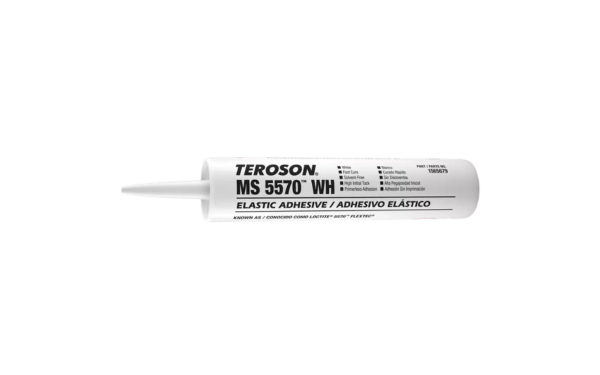

TEROSON® MS 5570™ is a one-component, moisture-curing modified silane polymer adhesive and sealant for elastic bonding and sealing across a variety of substrates. The white paste cures through exposure to atmospheric moisture to form an elastomeric thermoset material. It combines high strength, high elongation, high initial tack, sag resistance, good UV resistance, and compatibility with suitable paint systems for interior and exterior applications.
Key features
- Elastic bonding and sealing: Provides a high-strength, flexible bond with 230% elongation at break.
- One-component moisture cure: Requires no mixing, develops functional strength in approximately 24 hours, and fully cures in about seven days under normal conditions.
- Broad application performance: Offers high initial tack, sag resistance, good UV resistance, and compatibility with suitable paint systems.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Mechanical Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical properties of the uncured material; values are reference data rather than guaranteed product specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Technology | Flextec™ polymer | — | Uncured material |
| Chemical type | Modified silane polymer | — | Uncured material |
| Appearance | White paste | — | Uncured material |
| Components | One component | — | No mixing required |
| Density | 1.28–1.44 | g/mL | ISO 2811-1; 22°C |
| Extrusion rate | 200–900 | g/min | Typical uncured-material property |
| Flow | 0–3 | mm | ISO 7390 |
| Skin-over time | 10–60 | min | 25 ± 2°C, 50 ± 5% RH |
| Depth of cure | 1–6 | mm/day | Moisture-cure rate; depends on temperature and humidity |
| Flash point | 96 | °C | ASTM D3278, Setaflash closed cup; SDS value |
After-processing / final-state properties
Typical cured-material properties depend on the stated cure schedule, substrate, specimen, and test method.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Service temperature | −30 to 80 | °C | Continuous service range |
| Maximum intermittent exposure temperature | 100 | °C | Intermittent exposure |
| Elongation at break | 230 | % | ISO 527-3; cured 21 days at 22°C and 50 ± 5% RH |
| Tensile strength | 2.4 | N/mm² | ISO 527-3; cured 21 days at 22°C and 50 ± 5% RH |
| Glass-transition temperature | −64 | °C | ISO 11357-2; cured 21 days at 22°C and 50 ± 5% RH |
| Nonvolatile content | 98 | % | ASTM D2369; cured 21 days at 22°C and 50 ± 5% RH |
| Shore hardness | 53 | Shore A | ISO 868; cured 21 days at 22°C and 50 ± 5% RH |
| Lap-shear strength | 2.8 | N/mm² | ISO 4587; grit-blasted steel; cured 21 days at 22°C |
| Lap-shear strength | 2.6 | N/mm² | ISO 4587; glass; cured 21 days at 22°C |
| Block-shear strength | 3.2 | N/mm² | ISO 13445; nylon; cured 21 days at 22°C |
| T-peel strength | 0.5 | N/mm | ISO 11339; aluminum; cured 21 days at 22°C |
| Impact strength | 3.4 | J | ISO 9653; aluminum; cured 21 days at 22°C |
