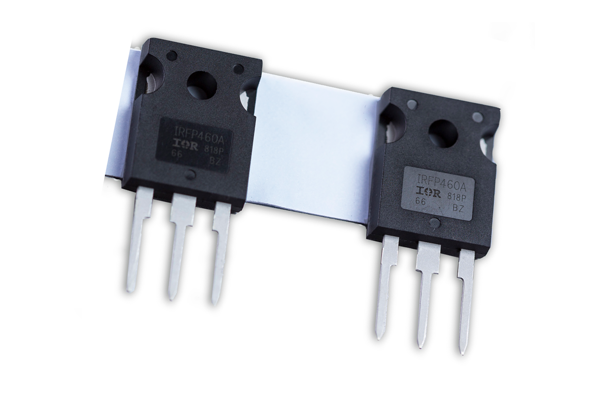

TIP 5000 | Thermal insulator pad
Harmonization Code : 3824.99.96.99 | Prepared binders for foundry moulds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included : Other : Other: Other
Main features
- 0.15 - 0.18 Thermal Impedance
- 5.0 Thermal Conductivity
- 0.25 - 0.50 mm Thickness
Product Description
Honeywell's TIP5000 thermal insulator pad comes in a white color and offers thickness ranging from 0.25 - 0.50mm. While the Breakdown voltage between Thermal insulators is similar and they are all V0 rated, their dielectric properties differ, mostly as an effect of the different thicknesses. It is ideal for Automotive electronics and Power conversion and supply equipment and comes with a single sided Pressure sensitive adhesive for easy assembly.
Honeywell's TIP5000 thermal insulator pad is designed to provide very low thermal impedance and high isolation for high power and high voltage applications. Integrated fiberglass reinforcement protects the pad from tears, cut-throughs and punctures. It is designed to be soft and conformal which provides excellent mating surface for low pressure mounting. Please consult the Specification fields and the Technical data sheets for additional information
SOLSTICE TIP5000
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Additional Information
TIP5000 humidity vs isolation resistance on TO247
Please note that these are general test results and not guaranteed specifications. They are to be used to help you out with your initial setup and general expectations.
