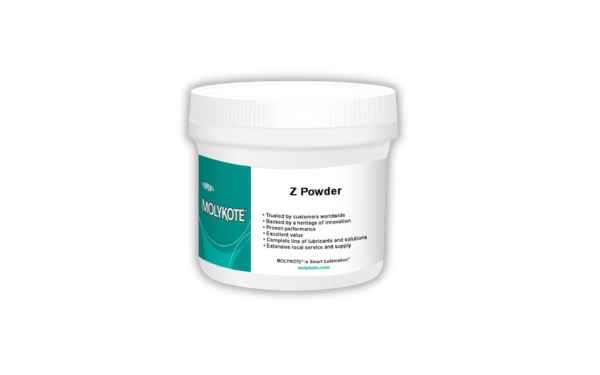

MOLYKOTE Z-POWDER
Harmonization Code : 3909.20.00.90 | Amino-resins, phenolic resins and polyurethanes, in primary forms : Melamine resins : Other
Main features
- 98% MoS2 Solid Lubricant
- 185 to 400 deg C Service Range
- 0.048 Coefficient of Friction
Product Description
MOLYKOTE® Z Powder is a charcoal-gray to black, free-flowing molybdenum disulfide solid lubricant for metallic contacts and lubricant-modified materials. It can be dry-burnished onto clean metal surfaces or incorporated into self-lubricating plastics, elastomers, sintered-metal parts, metalworking compounds, and brake-lining formulations. The powder is suited to heavy-load, slow-speed, press-fit, run-in, dusty, and temperature-extreme applications. With 98% typical MoS2 purity, a service-temperature range of −185°C to 400°C in atmosphere, and capability up to 1,100°C in vacuum, it supports lubrication where conventional liquid or grease films may be unsuitable.
Key features
- High-purity solid lubricant: Contains a typical 98% molybdenum disulfide content.
- Broad temperature capability: Supports service from −185°C to 400°C in atmosphere and up to 1,100°C in vacuum.
- High load-carrying performance: Provides a typical Almen-Wieland OK load greater than 20,000 N.
- Low-friction behavior: Provides a typical press-fit coefficient of friction of 0.048 under the stated test method.
- Flexible use: Can be dry-burnished onto metal or added to plastics, elastomers, sintered metals, and lubricant formulations.
- Extreme-environment suitability: Supports heavy-load, slow-speed, dusty, run-in, and press-fit applications.
Applications / Suitable for
- Dry-burnished lubricating films on metallic contacts
- Self-lubricating plastics and elastomers
- Sintered-metal components
- Metalworking compounds and brake-lining formulations
- Press-fits and assembly run-in
- Heavy-load, slow-speed, dusty, vacuum, and temperature-extreme environments
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical as-supplied characteristics and storage information for MOLYKOTE® Z Powder. Values are not intended as specification limits.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Product type | Solid lubricant powder | — | Molybdenum disulfide lubricant |
| Composition | Molybdenum disulfide | — | MoS2 |
| Appearance | Charcoal gray to black | — | Typical property |
| Consistency | Free-flowing powder | — | As supplied |
| MoS2 purity | 98 | % | Typical content |
| Particle size, D90 | <78.38 | µm | CTM 1392; laser method in 2-propanol |
| Particle size, D50 | <31.59 | µm | CTM 1392; laser method in 2-propanol |
| Particle size, Fisher method | 3–4 | µm | CTM 0268A |
| Theoretical density | 4.8 | g/cm³ | Solid state |
| Bulk density | 1.3 | g/cm³ | ISO 3923-2; powder state |
| Water/moisture content | 0.02 | % | CTM 0262M |
| Usable life | 60 | months | Original unopened bags stored at or below 20°C |
After-application / in-service properties
Typical performance characteristics of the dry-burnished or incorporated solid lubricant under the stated conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Service-temperature range | −185 to 400 | °C | Atmospheric service |
| Vacuum temperature capability | Up to 1,100 | °C | In vacuum; application-specific |
| Almen-Wieland OK load | >20,000 | N | Typical laboratory result |
| Coefficient of friction | 0.048 | µ | Press-fit test |
| Oxidation resistance | Resistant | — | Supplier-documented qualitative characteristic |
| Lubrication regime | Heavy load / slow speed | — | Documented application context |
