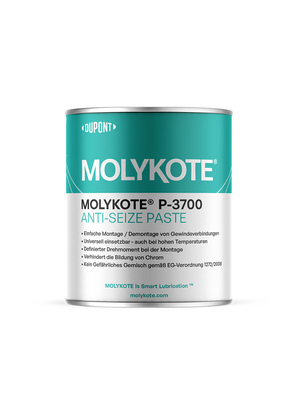

MOLYKOTE P-3700
Harmonization Code : 8473.30.80.00 | Parts and accessories (other than covers, carrying cases and the like) suitable for use solely or principally with machines of headings 8470 to 8472 ; Parts and accessories of the machines of heading 8471 ; Other; Other
Main features
- High-Purity Solid-Lubricant Paste
- 3,000 N Weld Load
- Controlled M12 Fastener Friction
Product Description
MOLYKOTE P-3700 Anti-Seize Paste is a dark-gray, high-purity mineral-oil paste with special solid lubricants for bolted joints exposed to elevated temperatures. The formulation contains no intentional calcium, lead, nickel, sulfur, chlorine, or fluorine and is suggested for high-chromium and stainless alloys. Typical data include a 3,000 N four-ball weld load, 280 to 320 unworked penetration, and controlled thread/head friction values for defined M12 fastener systems. The paste is applied to cleaned, fully coated screws, nuts, and bolts, while its solid lubricants resist temperatures from -30 to 900 deg C.
Key features
- High-Purity Solid Lubricants: The formulation contains no intentional calcium, lead, nickel, sulfur, chlorine, or fluorine.
- 3,000 N Weld Load: The four-ball weld-load result is measured by DIN 51350, Part 4.
- Controlled Fastener Friction: M12 fastener tests provide thread, head, and K-factor values for blackened and stainless systems.
Applications / Suitable for
- Screws, nuts, and bolts in elevated-temperature industrial equipment.
- High-chromium alloy bolted joints.
- Stainless-steel anti-seize applications.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Additional Information
As-supplied paste properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Dark gray | Typical | |
| Unworked penetration | 280 to 320 | mm/10 | ISO 2137; typical |
| Density | 1.23 | g/cm3 | ISO 2811 at 20 deg C; typical |
In-service performance properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Service-temperature range | -30 to 900 | deg C | Solid-lubricant paste; typical |
| Four-ball weld load | 3,000 | N | DIN 51350, Part 4; typical |
| Four-ball wear scar | 1.0 | mm | DIN 51350, Part 5 under 400 N load; typical |
| Thread/head friction coefficient | 0.11 / 0.10 | M12 x 1.75, grade 8.8, blackened surface; average | |
| K-factor | 0.14 | M12 x 1.75, grade 8.8, blackened surface; average | |
| Stainless thread/head friction coefficient | 0.13 / 0.11 | M12 x 1.75, A2-70, material 1.4301; average | |
| Initial breakaway torque | ~110 | N m | After 21 h at 540 deg C on material 1.7709; start torque 55 N m |
