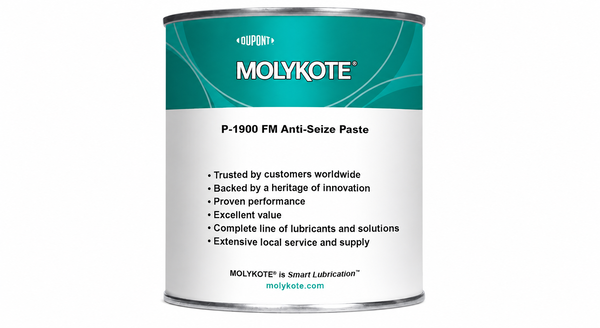

MOLYKOTE P-1900
Harmonization Code : 8473.30.80.00 | Parts and accessories (other than covers, carrying cases and the like) suitable for use solely or principally with machines of headings 8470 to 8472 ; Parts and accessories of the machines of heading 8471 ; Other; Other
Main features
- 3,200 N Weld Load
- Controlled 0.10 Bolt Friction
- -30 to 300 deg C Service
Product Description
MOLYKOTE P-1900 FM Anti-Seize Paste is a white mineral-oil/aluminum-complex anti-seize paste with solid lubricants for heavy-load mechanical contacts at low to medium speeds. It has NLGI 1 consistency, 34 mm2/s base-oil viscosity at 40 deg C, and a service range of -30 to 300 deg C. Typical performance data include a 3,200 N four-ball weld load and 0.10 thread and head friction coefficients on an M12 grade 8.8 bolted connection. The paste is applied to cleaned contact points by brush or grease gun for mechanical components in food and beverage processing equipment.
Key features
- 3,200 N Weld Load: The four-ball weld-load result is measured by DIN 51350, Part 4.
- Controlled Bolt Friction: Thread and head friction coefficients are both 0.10 on the M12 grade 8.8 test connection.
- -30 to 300 deg C Service: The paste covers a broad operating-temperature range for mechanical contacts.
Applications / Suitable for
- Mechanical components in food and beverage processing equipment.
- Sliding surfaces under heavy loads.
- Friction contacts operating at low to medium speeds.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Additional Information
As-supplied paste properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | White | Typical | |
| NLGI consistency class | 1 | DIN 51818; typical | |
| Unworked penetration | 290 to 340 | mm/10 | Typical |
| Density | 1.11 | g/ml | ISO 2811 at 20 deg C; typical |
| Base-oil viscosity | 34 | mm2/s | DIN 51562 at 40 deg C; typical |
In-service performance properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Service-temperature range | -30 to 300 | deg C | Typical |
| Four-ball weld load | 3,200 | N | DIN 51350, Part 4; typical |
| Four-ball wear scar | 0.90 | mm | DIN 51350, Part 5 under 800 N load; typical |
| Thread/head friction coefficient | 0.10 / 0.10 | M12 grade 8.8 bolted connection; typical | |
| Stainless thread/head friction coefficient | 0.11 / 0.11 | M12, material 1.4301; typical | |
| Initial breakaway torque | 85 | N m | After 21 h at 300 deg C on material 1.7709; starting torque 56 N m |
| Press-fit friction coefficient | 0.10 | Press-fit test; no chatter |
