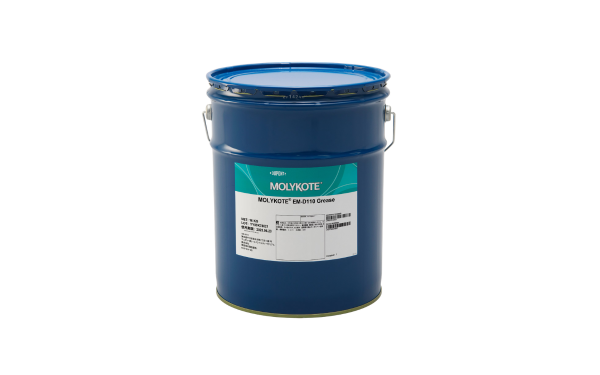

MOLYKOTE EM-D110 GREASE

Main features

Compatible with Most Plastics
High-Viscosity PAO Oil
Silicone-Free Lubrication Formulation

Product Description

MOLYKOTE® EM-D110 Grease is a white, high-viscosity-base-oil polyalphaolefin grease developed for lubricating plastic components. Its lithium-soap-thickened formulation contains PTFE and other solid lubricants and is compatible with most plastics. The grease is designed for applications requiring noise reduction and damping, including plastic gears and driveshaft spline connections, while its low seepage supports use where cleanliness is important.

Key features

Plastic-component lubrication: Compatible with most plastics and formulated to reduce noise from plastic gears.
Noise and vibration damping: High-viscosity base oil supports applications where noise reduction and damping are required.
Low-seepage, silicone-free formulation: Supports cleaner application areas and avoids silicone-related contact-point failures.

Applications / Suitable for

Plastic gears requiring reduced operating noise
Driveshaft spline connections requiring reduced engagement feedback
Plastic-component lubrication where damping and low seepage are desired

TDS, SDS & Technical Documents

Technical Specifications

General Properties

Appearance

White

Density

860 kg/m3

Thermal Properties

Operating Temperature

-10 to 150 °C

Additional Information

Technical properties

As-supplied / before-processing properties

Typical values for the grease as supplied. These values are not intended for use as specification limits.

Property	Value	Unit	Method / condition
Appearance	White	—	Typical
Base oil viscosity	9,850	mm²/s	40°C
Worked penetration	360	—	JIS K 2220; worked 60 times
NLGI class	0 to 1	—	Typical
Density	0.86	g/cm³	Typical
Drop point	195	°C	JIS K 2220
Bleed	2.5	%	JIS K 2220; 100°C, 24 hours
Evaporation	0.2	%	JIS K 2220; 99°C, 22 hours
