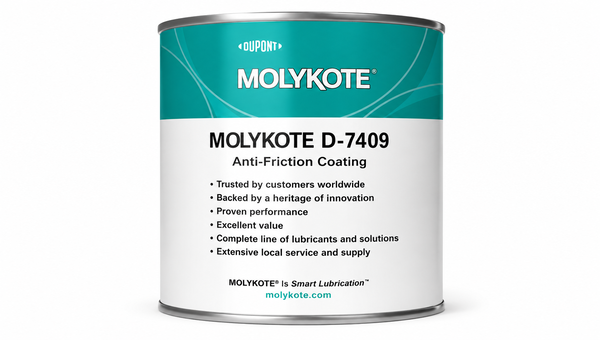

MOLYKOTE D-7409
Harmonization Code : 3909.20.00.90 | Amino-resins, phenolic resins and polyurethanes, in primary forms : Melamine resins : Other
Main features
- Heat-Curing Dry-Film Lubricant
- High-Load Wear-Resistant Dry-Film Lubrication
- Solvent and Oil Resistance
Product Description
MOLYKOTE® D-7409 Anti-Friction Coating is a high-performance, heat-curing dry-film lubricant formulated with solid lubricants, including molybdenum disulfide and graphite, within an organic binder and solvent system. Designed to replace traditional oils and greases in highly stressed applications, this grayish-black coating provides outstanding permanent lubrication for metal-to-metal combinations operating under moderate to high loads and low sliding speeds.
Key features
- High load and wear resistance: Withstands extreme contact pressures, exhibiting a Falex load-carrying capacity of up to 11,100 N and excellent endurance on phosphated surfaces.
- Extreme temperature and chemical stability: Operates reliably across a broad service temperature range of -70°C to 300°C (-94°F to 572°F) while remaining highly resistant to oils, greases, and solvents.
- Corrosion prevention: Actively avoids fretting corrosion and provides up to 250 hours of protection without red rust in salt spray testing. Formulated without intentional PTFE or PFAS.
Applications / Suitable for
- Permanent lubrication of highly stressed sliding areas where oils and greases cannot be used
- Piston rings and tappets of combustion engines
- Magnetic armatures of vehicle starter motors and bonnet lock components
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical Composition | Solid lubricants, organic binder, organic solvents | - | Contains molybdenum disulfide and graphite |
| Physical State / Appearance | Grayish black / Grey | - | Liquid |
| Dynamic Viscosity | 35 | mPas | at 23°C (73°F) (ASTM D1084, Method B). SDS reports 400 mPa.s |
| Kinematic Viscosity | 24 | mm²/s | at 25°C (77°F) |
| Density | 1.1 - 1.17 | g/ml | at 23°C (73°F) (ASTM D1475). Density values vary slightly between TDS and SDS |
| Flash Point | 40 | °C | (104°F) Closed cup (ASTM D56) |
| Boiling Point | 138 | °C | (280°F) |
| Shelf Life | 36 | months | Stored between 5°C and 23°C in unopened containers from date of production |
After-processing / in-service properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Recommended Dry-Film Thickness | 5 to 20 | µm | - |
| Curing Time | 30 | minutes | at 220°C object temperature |
| Service Temperature Range | -70 to +300 | °C | (-94 to +572 °F) |
| Falex Load-Carrying Capacity | 8,700 (s) / 11,100 (m) | N | Procedure B (ASTM D2625) (s=sandblasted, m=Mn-phosphated) |
| LFW-1 Wear (Oscillating) | 158k (s) / 228k (m) / 153k (z) | - | Oscillations to µ=0.08 (980 N @ 89.5 osc/min) (ASTM D2714) (z=Zn-phosphated) |
| SRV Load-Carrying Capacity (Ball/Disc) | 1,900 (s) / 2,500 (m) / 2,300 (z) | MPa | Ramp 10 N/3 min, 80 mm/s, 50°C, 40% rel. humidity (ASTM D7217) |
| SRV Endurance Life (Ball/Disc) | > 12 (m) / > 12 (z) | h | Load 15 N (1,160 MPa), 40 mm/s, 50°C, 40% rel. humidity (DIN 51834) |
| Corrosion Resistance | 250 (z) | h | Without red rust (steel substrate, 15 µm film) (ASTM B117, DIN 50021) |
