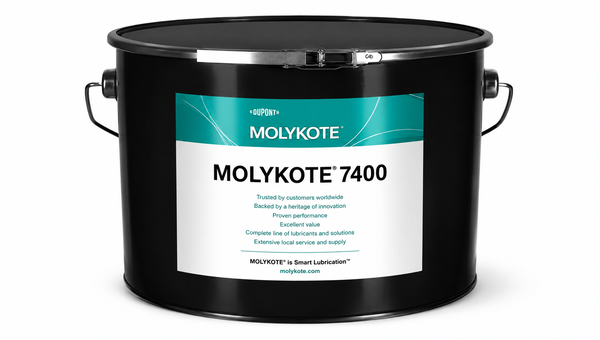

MOLYKOTE 7400
Harmonization Code : 3909.20.00.90 | Amino-resins, phenolic resins and polyurethanes, in primary forms : Melamine resins : Other
Main features
- Water-Based MoS2/Graphite Dry-Film Lubricant
- High Load-Carrying Capacity
- Air-Curing Lubricant Coating
Product Description
MOLYKOTE® 7400 Anti-Friction Coating is an environmentally friendly, water-based, air-curing dry film lubricant completely free from flammable solvents. Formulated as a dark gray liquid containing solid lubricants like molybdenum disulfide and graphite within an organic binder, it dries to provide a permanent, non-soiling lubricating film. It excels in metal-to-metal applications involving high loads and slow-to-moderately fast movements, serving as an excellent alternative where the use of traditional oils or greases is restricted due to design or contamination risks.
Key features
- Solvent-free formulation: Water-based chemistry eliminates flammable solvents, improving workplace safety while providing a low coefficient of friction.
- High load capacity: Withstands extreme contact pressures, exhibiting a Falex load-carrying capacity of 11,300 N on phosphatized surfaces.
- Rapid air curing: Offers fast, flexible curing options—achieving a fully cured film in just 40 minutes at room temperature (23°C) or in 5 minutes at 90°C.
Applications / Suitable for
- Maintenance-free, permanent, and non-soiling lubrication of highly stressed friction combinations
- Improving the running-in of gearboxes, sliding bearings, sliding guides, and car transmission shafts
- Lubricating threaded sleeves of car seat adjusting mechanisms and cold working of steel
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical Composition | Solid lubricants, organic binder, water, inhibitors, stabilizers | - | Contains molybdenum disulfide and graphite |
| Physical State / Appearance | Dark gray / Grey | - | Liquid |
| Viscosity (Efflux Time) | 24 | s | at 20°C (DIN4 cup) (DIN 53211/4) |
| Kinematic Viscosity | 24 | mm²/s | at 25°C (77°F) |
| Density | 1.16 - 1.165 | g/ml | at 20°C (DIN 53217/2). Value varies between SDS Relative Density and TDS reporting |
| Nonvolatile Content | 30 | % | CTM 02421 |
| pH | 6 - 8 | - | at 20°C (CTM 0007 A). Value varies between SDS and TDS |
| Flash Point | > 100 | °C | Closed cup (> 212 °F) |
| Shelf Life | 12 | months | Stored between 1°C and 30°C in unopened containers |
After-processing / in-service properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Recommended Dry-Film Thickness | 5 to 20 | µm | - |
| Drying Time | 15 | minutes | at 20°C |
| Curing Time | 40 | minutes | at 23°C (object temperature) |
| Curing Time (Alternative) | 10 | minutes | at 50°C (object temperature) |
| Curing Time (Alternative) | 5 | minutes | at 90°C (object temperature) |
| Service Temperature Range | -70 to +200 | °C | - |
| Falex Load-Carrying Capacity | 11,300 (p) / 7,900 (s) | N | ASTM D2625 (p = phosphate, s = sandblasted surface pretreatment) |
| LFW-1 Wear (Rotating) | 343 | N | Revolutions x1,000 to µ=0.1 (F=2,860 N, n=72 rpm, v=7.9 m/min, phosphatized) (ASTM D2714) |
| LFW-1 Wear (Oscillating) | 76 | N | Oscillations x1,000 to µ=0.08 (F=900 N @ 89.5 osc/min, phosphatized) |
| Fretting Corrosion (Deyber Test) | 10 x 10^6 | - | - |
