LORD 363
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- 3 to 5-Minute Working Window
- Self-Leveling Flowable Placement
- Solvent-Free Bonding Formulation
Product Description

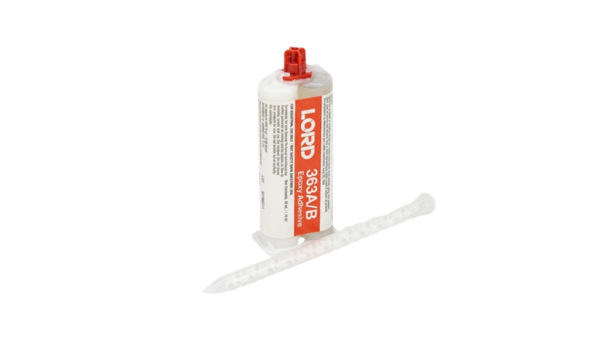

LORD® 363-A/363-B Epoxy Adhesive is a fast-setting, two-component epoxy adhesive designed to bond scuffed sheet molding compounds (SMC), wood, fiberglass reinforced plastics (FRP) and other supported plastics. Its self-leveling consistency flows into hard-to-reach areas and supports assemblies with tight tolerances. The solvent-free system can be cured at room temperature or with heat for faster processing.
Key Features
- Fast room-temperature cure with a 3–5 minute working time and handling strength in 15–30 minutes.
- Self-leveling consistency for flowing into hard-to-reach areas and bonding close-fitting parts.
- Solvent-free formulation that is nonflammable and virtually odorless.
- Room-temperature or heat curing to support different production requirements.
Applications / Suitable for
- Scuffed sheet molding compound bonding
- Fiberglass reinforced plastic bonding
- Wood and supported plastic assemblies
- Close-fitting parts and hard-to-reach bond areas
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Additional Information
As-Supplied / Before-Processing Properties
Typical component and mixed properties. Values are typical and are not intended for specification purposes.
| Property | 363-A Resin | 363-B Hardener | Mixed | Method / Condition |
|---|---|---|---|---|
| Appearance | Clear liquid | Light amber liquid | Light amber liquid | Typical |
| Viscosity | 7,000–16,000 cP | 8,000–20,000 cP | — | Brookfield HAT, 10 rpm at 77°F (25°C); Spindle 4 for resin and T-C spindle for hardener |
| Density | 9.4–10.0 lb/gal (1126–1198 kg/m³) |
9.3–9.6 lb/gal (1114–1150 kg/m³) |
— | Typical |
| Flash Point | >200°F (>93°C) |
>200°F (>93°C) |
— | Closed cup |
| Mix Ratio | 1 part | 1 part | 1:1 | Resin to hardener, by volume |
| Solids Content | — | — | 100% | Mixed adhesive |
| Working Time | — | — | 3–5 minutes | 54 g mass at 75°F (24°C) |
| Time to Handling Strength | — | — | 15–30 minutes | Typical |
| Shelf Life | 2 years | 2 years | — | From date of manufacture; store at 60–80°F (16–27°C) in original, unopened containers |
After-Processing / Final-State Properties
Supported cure and final-state characteristics. Values are typical and are not intended for specification purposes.
| Property | Value | Unit | Method / Condition |
|---|---|---|---|
| Cure to Full Strength | 4–6 | hours | Adhesive, substrates and ambient temperature at 65°F (18°C) or higher |
| Maximum Bondline Temperature During Heat Cure | 325 (162) |
°F (°C) |
Higher temperatures accelerate cure; firm cure recommendations depend on material composition and heating method |
| Cured Appearance | Tan | — | Typical |
