LOCTITE TCP7000
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Stencil-Printable Phase-Change Layer
- No Pump-Out or Dry-Out
- Reworkable Silicone-Free Interface
Product Description

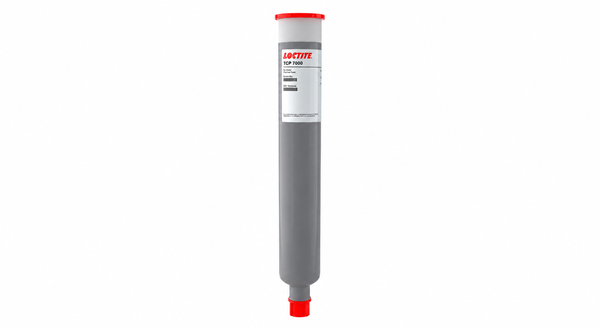

LOCTITE TCP 7000 Printable Phase-Change Thermal Interface Material is a gray, non-silicone phase-change thermal interface paste formulated for stencil or screen printing between heat-generating devices and heat-dissipating surfaces. The cartridge-supplied material dries to a solid layer, then flows at its 45 deg C phase-change temperature to conform at the interface. Dried material has thermal conductivity greater than 3.0 W/(m K) by ASTM D5470 and an operating range up to 150 deg C. It is reworkable and is formulated to avoid pump-out, dry-out, and silicone migration in processors, memory devices, power modules, IGBTs, and active heat-sink assemblies.
Key features
- Stencil and Screen Printing: Supports patterned application through stencil or screen processes.
- Reworkable Silicone-Free Interface: Provides a removable interface without silicone migration.
- 45 deg C Phase Change: The dried layer flows at the phase-change temperature to conform at the interface.
Applications
Applications include microprocessors, GPUs, multi-chip modules, ASICs, IGBTs, FBDIMMs and other memory devices, lidded processors, active heat sinks, power modules, and high-power electronics.
TDS, SDS & Technical Documents
Technical Specifications
Thermal Properties
General Properties
Additional Information
As-supplied paste properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Gray paste | As supplied | |
| Specific gravity | 2.0 | g/cm^3 | As supplied |
| Application method | Stencil or screen printing | Inline dispensing is not recommended | |
| Maximum recommended thickness | 254 | um | For complete drying under normal conditions |
| Storage life | 365 | days | Stored at 2 to 8 deg C |
Dried interface properties
Values apply after the printed material has been dried using an appropriate thickness-dependent schedule.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Phase-change temperature | 45 | deg C | DSC |
| Thermal conductivity | >3.0 | W/(m K) | ASTM D5470, dried material |
| Operating temperature | Up to 150 | deg C | Dried interface |
