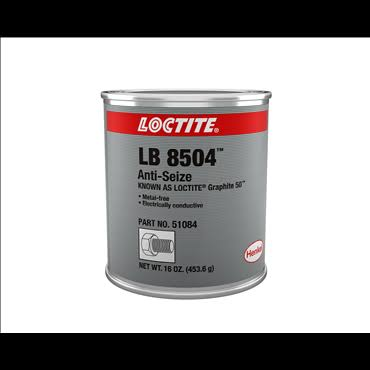

LOCTITE LB8504
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Non-Metallic Conductive Anti-Seize
- 482 deg C Operating Range
- 0.13 Steel Fastener Torque Coefficient
Product Description
LOCTITE LB 8504 is a one-component, non-metallic graphite and petrolatum anti-seize paste for threaded and fitted metal joints. The dark gray paste is applied full strength to machine threads, tapered pipe threads, press-fit joints and slip-fit joints. It has a typical penetration of 310 to 360 in 0.1 mm units under ISO 2137 and a specific gravity of 1.18 at 25 deg C. The formulation is electrically conductive in metal-to-metal joints and supports an operating range from -29 to 482 deg C. A torque coefficient of 0.13 is reported on the specified steel bolt-and-nut configuration.
Key features
- Non-metallic graphite paste: Synthetic graphite and petrolatum provide anti-seize lubrication without metallic solids.
- High-temperature joint service: The applied paste supports use from -29 to 482 deg C.
- Controlled torque response: A torque coefficient of 0.13 is reported on the specified steel fastener configuration.
Applications
Applications include machine threads, tapered pipe threads, press-fit joints, slip-fit joints and anti-seize lubrication of metal assemblies.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
As-supplied properties
Typical as-supplied product values.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Dark gray paste | As supplied | |
| Components | One component | No mixing required | |
| Specific gravity | 1.18 | At 25 deg C | |
| Penetration | 310 to 360 | 0.1 mm | ISO 2137 |
| Weight per gallon | 9.5 to 10.4 | lb/gal | As supplied |
| Optimal storage | 8 to 21 | deg C | Unopened container in a dry location |
After-application / in-service properties
After-application and in-service behavior under the stated joint configuration.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Operating temperature range | -29 to 482 | deg C | Applied anti-seize paste |
| Torque coefficient | 0.13 | 12.7 mm grade 8 steel bolts with grade 5 nuts | |
| Unlubricated torque coefficient | 0.27 | Same bolt-and-nut configuration, solvent cleaned | |
| Electrical behavior | Conductive | Metal-to-metal joints |
