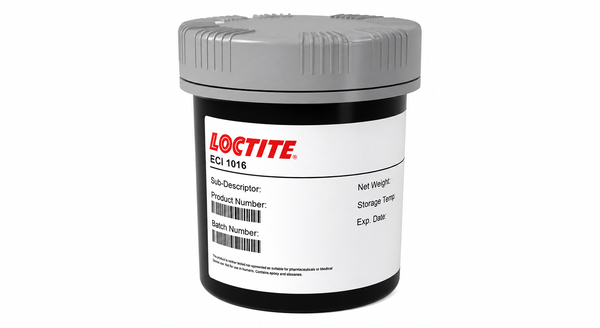

LOCTITE ECI1016

Main features

High-Speed Rotary Screen Printing
Low-Resistance Silver Conductive Traces
Two-Minute Hot-Air Drying

Product Description

LOCTITE ECI 1016 EC is a low-viscosity, silver-filled thermoplastic conductive ink for high-speed roll-to-roll rotary screen printing. The gray paste contains 68% solids and is formulated for printed antennas and conductive circuits on PET or paper. The recommended hot-air drying cycle is 2 minutes at 150 deg C. After drying, the ink has 5B cross-cut adhesion on untreated PET and sheet resistance of 0.0065 ohm/sq/25 um after 10 minutes at 150 deg C. The dried material has a maximum operating temperature of 105 deg C.

Key features

High-speed rotary printing: Low viscosity supports roll-to-roll rotary screen application.
Low-resistance silver traces: The dried film reaches 0.0065 ohm/sq/25 um under the documented condition.
Rapid hot-air drying: The recommended guideline cycle is 2 minutes at 150 deg C.

Applications

Applications include RFID antennas, printed antennas and conductive circuits on PET or paper.

TDS, SDS & Technical Documents

Technical Specifications

General Properties

Appearance

Gray paste

Density (g)

2.6 g/cm3

Solids

68 %

Physical Properties

Drying Time

2 minutes minutes

Thixotropic index

1.7

Viscosity

7,300 mPa.s

Additional Information

Technical properties

As-supplied properties

Typical values for the undried conductive ink.

Property	Value	Unit	Method / condition
Appearance	Gray paste		As supplied
Filler type	Silver		Conductive filler
Solids content	68	%	Undried material
Density	2.6	g/ml	Undried material
Viscosity	7,300	mPa s	Rheometer, 1.5 s^-1, 25 deg C
Thixotropic index	1.7		15/1.5 s^-1
Theoretical coverage	8	m^2/kg	At 10 um dry coating thickness
Shelf life	365	days	At 2 to 8 deg C
