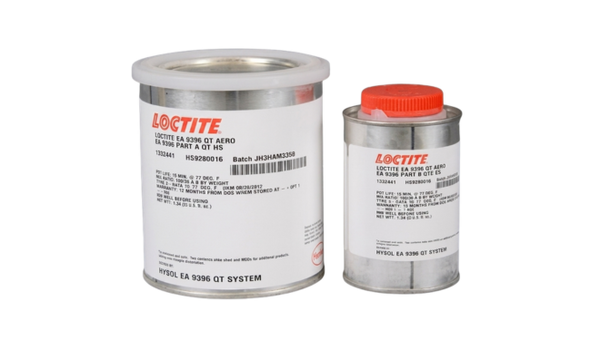

Loctite EA 9396

Main features

Low Mixed Viscosity
120-Minute Pot Life
MMM-A-132 Type 1 Class 3 Qualification

Product Description

LOCTITE® EA 9396 AERO is a two-part, low-viscosity epoxy paste adhesive that cures at room temperature and develops high bond strength across test temperatures from -67°F to 350°F (-55°C to 177°C). The mixed adhesive has a viscosity of 35 Poise (3.5 Pa·s) at 77°F (25°C), a 120-minute pot life for a 100 g mass, and a 100:30 Part A-to-Part B mix ratio by weight. Normal performance can be developed through a 3-to-5-day cure at 77°F (25°C), while a 1-hour cure at 150°F (66°C) provides an accelerated option. The product is qualified to MMM-A-132, Revision A, Type 1, Class 3.

Key features

Low mixed viscosity: The mixed adhesive has a viscosity of 35 Poise (3.5 Pa·s) at 77°F (25°C).
Room-temperature processing: Provides a 120-minute pot life for a 100 g mass and develops handling strength after 24 hours at 77°F (25°C).
Temperature-dependent bond strength: ASTM D1002 lap-shear testing on phosphoric-acid-anodized 2024-T3 bare aluminum covers test temperatures from -67°F to 350°F (-55°C to 177°C).

TDS, SDS & Technical Documents

Technical Specifications

Physical Properties

Viscosity (Part A)

70,000 mPa.s

Viscosity (Part B)

90 mPa.s

General Properties

Mix Ratio

100:30

Additional Information

Technical properties

As-supplied / before-processing properties

Typical component, mixed-material, storage, and processing data for the two-part adhesive system.

Property	Value	Unit	Method / condition
Color — Part A	Blue	—	Uncured component
Color — Part B	Purple	—	Uncured component
Color — Mixed	Green to dark purple	—	Immediately after mixing
Viscosity — Part A	700 / 70	Poise / Pa·s	77°F/25°C; Brookfield HBT, spindle 4 at 10 rpm / 2.1 rad/s
Viscosity — Part B	0.9 / 0.09	Poise / Pa·s	77°F/25°C; Brookfield HBT, spindle 1 at 100 rpm / 10.5 rad/s
Viscosity — Mixed	35 / 3.5	Poise / Pa·s	77°F/25°C; Brookfield HBT, spindle 1 at 20 rpm / 2.1 rad/s
Density — Part A	1.17	g/mL	Uncured component
Density — Part B	0.98	g/mL	Uncured component
Density — Mixed	1.14	g/mL	Mixed adhesive
Mix ratio — Part A:Part B	100:30	By weight	Volume measurement is not recommended for structural applications unless ratio-control precautions are used
Pot life	120	minutes	100 g mass at 77°F/25°C; ASTM D2471, water bath
Handling strength	24	hours	At 77°F/25°C; full bond strength has not yet developed
Normal cure	3–5	days	At 77°F/25°C
Accelerated cure	1	hour	At 150°F/66°C
Shelf life — Part A	1	year	Stored below 40°F/4°C or below 77°F/25°C
Shelf life — Part B	1	year	Stored below 40°F/4°C or below 77°F/25°C

Technical properties

After-processing / final-state properties

Typical cured adhesive and bonded-joint properties. Values remain specific to the listed cure, specimen, substrate, test method, and test temperature.

Property	Value	Unit	Method / condition
Tensile lap shear strength	3,300 / 22.8	psi / MPa	ASTM D1002; tested at -67°F/-55°C after 5 days at 77°F/25°C
Tensile lap shear strength	3,500 / 24.1	psi / MPa	ASTM D1002; tested at 77°F/25°C after 5 days at 77°F/25°C
Tensile lap shear strength	3,200 / 22.0	psi / MPa	ASTM D1002; tested at 180°F/82°C after 5 days at 77°F/25°C
Tensile lap shear strength	1,800 / 12.4	psi / MPa	ASTM D1002; tested at 300°F/149°C after 5 days at 77°F/25°C
Tensile lap shear strength	1,250 / 8.6	psi / MPa	ASTM D1002; tested at 350°F/177°C after 5 days at 77°F/25°C
Tensile lap shear strength	3,300 / 22.8	psi / MPa	ASTM D1002; tested at -67°F/-55°C after 1 hour at 150°F/66°C
Tensile lap shear strength	4,000 / 27.6	psi / MPa	ASTM D1002; tested at 77°F/25°C after 1 hour at 150°F/66°C
Tensile lap shear strength	3,300 / 22.8	psi / MPa	ASTM D1002; tested at 180°F/82°C after 1 hour at 150°F/66°C
Tensile lap shear strength	1,800 / 12.4	psi / MPa	ASTM D1002; tested at 300°F/149°C after 1 hour at 150°F/66°C
Tensile lap shear strength	1,200 / 8.3	psi / MPa	ASTM D1002; tested at 350°F/177°C after 1 hour at 150°F/66°C
Tensile lap shear strength	3,500 / 24.1	psi / MPa	ASTM D1002; tested at -67°F/-55°C after 30 minutes at 180°F/82°C
Tensile lap shear strength	4,000 / 27.6	psi / MPa	ASTM D1002; tested at 77°F/25°C after 30 minutes at 180°F/82°C
Tensile lap shear strength	3,300 / 22.8	psi / MPa	ASTM D1002; tested at 180°F/82°C after 30 minutes at 180°F/82°C
Tensile lap shear strength	1,900 / 13.1	psi / MPa	ASTM D1002; tested at 300°F/149°C after 30 minutes at 180°F/82°C
Tensile lap shear strength	1,200 / 8.3	psi / MPa	ASTM D1002; tested at 350°F/177°C after 30 minutes at 180°F/82°C
Bell peel strength	25 / 111	lb/in / N/25 mm	ASTM D3167; tested at 77°F/25°C after 5 days at 77°F/25°C
Bell peel strength	20 / 89	lb/in / N/25 mm	ASTM D3167; tested at 180°F/82°C after 5 days at 77°F/25°C
Service temperature	Approximately 350 / 177	°F / °C	Defined as the temperature at which the adhesive retains 1,000 psi/6.9 MPa by ASTM D1002
Tensile strength	8,000 / 35.2	psi / MPa	ASTM D638; 0.125 in/3.18 mm casting; tested at 77°F/25°C; cure 5 days at 77°F/25°C plus 1 hour at 200°F/93°C
Tensile modulus	400,000 / 2,750	psi / MPa	ASTM D638; 0.125 in/3.18 mm casting; tested at 77°F/25°C; cure 5 days at 77°F/25°C plus 1 hour at 200°F/93°C
Elongation at break	3.4	%	ASTM D638; tested at 77°F/25°C; cure 5 days at 77°F/25°C plus 1 hour at 200°F/93°C
Dielectric constant	4.17	—	ASTM D150 at 0.1 kHz
Dielectric constant	4.12	—	ASTM D150 at 1.0 kHz
Dielectric constant	3.97	—	ASTM D150 at 10.0 kHz
Dissipation factor	0.006	—	ASTM D150 at 0.1 kHz
Dissipation factor	0.017	—	ASTM D150 at 1.0 kHz
Dissipation factor	0.031	—	ASTM D150 at 10.0 kHz
Volume resistivity	2.14 × 1015	Ω·cm	Electrical property testing per ASTM D149/D150
Surface resistivity	3.17 × 1014	Ω	Electrical property testing per ASTM D149/D150
Thermal conductivity	5.01 × 10-4	cal/(s·cm·°C)	Cured bulk resin property
Coefficient of thermal expansion, α	70.7	µm/m·°C	Measured at 40°C
Coefficient of thermal expansion, α	108.0	µm/m·°C	Measured at 100°C
Hardness	80	Shore D	Measured at 77°F/25°C

Lap-shear and peel specimens used 2024-T3 bare aluminum adherends phosphoric-acid anodized in accordance with ASTM D3933.
