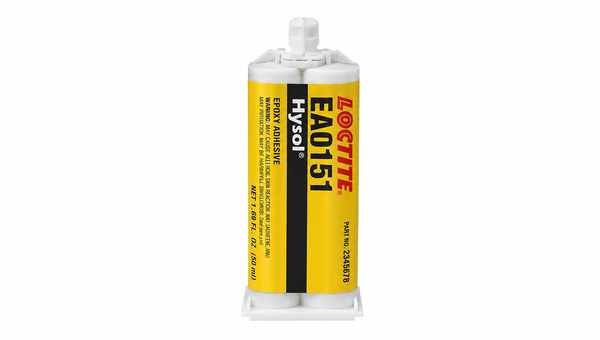

LOCTITE EA 0151
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Clear, Two-Component Epoxy
- Sixty-Minute Working Window
- Room-Temperature Adhesive Cure
Product Description
LOCTITE® EA 0151 is a clear, two-component epoxy adhesive that provides optical clarity when used in small quantities. The thixotropic paste combines a 60-minute pot life at 77°F with room-temperature or heat-curing options, allowing time for mixing, dispensing and assembly. It bonds a range of materials, including glass, metals, circuit boards, fiber optics and many plastics. The mixed adhesive is clear and can be supplied through cartridges or prepared in bulk using the documented component ratio. Its 100% solids formulation and electrical properties make it relevant for bonding applications where appearance, controlled processing and dielectric performance are important.
Key features
- Clear mixed appearance: Provides optical clarity when used in small quantities.
- Flexible cure options: Reaches complete cure at room temperature or through documented accelerated heat-cure schedules.
- 60-minute pot life: Provides a typical one-hour processing window at 77°F for a 100-gram mixed quantity.
Applications / Suitable for
- Glass bonding
- Metal bonding
- Circuit board assembly
- Fiber-optic bonding
- Bonding many plastics
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Thermal Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical properties of the separate components and mixed adhesive.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Milky white / Amber / Clear | — | Part A / Part B / Mixed |
| Viscosity | 40,000–100,000 | cP | Part A |
| Viscosity | 20,000–100,000 | cP | Part B |
| Specific gravity | 1.13 | — | Part A |
| Specific gravity | 0.98 | — | Part B |
| Mix ratio by weight | 100:33 | Parts | Part A:Part B |
| Mix ratio by volume | 2.7:1 | Parts | Part A:Part B; mix cartridges dispense at 2:1 |
| Pot life | 60 | min | Mixed, 100 g at 77°F |
After-processing / final-state properties
Typical properties of the cured adhesive, including reported NASA 1124 outgassing data.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Elongation | 2.4 | % | ASTM D638 |
| Glass transition temperature | 136 | °F | Typical cured value |
| Coefficient of thermal expansion | 47 × 10-6 | in/in/°C | ASTM D696 |
| Thermal conductivity | 5.6 × 10-4 | cal·cm/(cm²·s·°C) | Typical cured value |
| Shrinkage | <0.3 | % | Typical cured value |
| Hardness | 85 | Shore D | Typical cured value |
| Dielectric strength | 1080 | V/mil | ASTM D149 |
| Volume resistivity | 1.26 × 1015 | ohm/cm | ASTM D257 |
| Total mass loss | 1.51 | % | Outgassing performance, NASA 1124 |
| Collected volatile condensable material | 0.01 | % | Outgassing performance, NASA 1124 |
