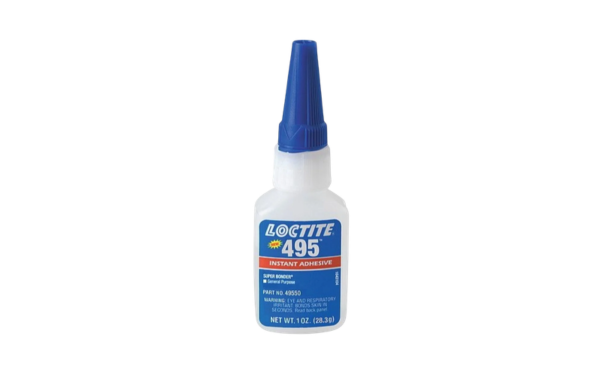

Loctite 495
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- One-Part Adhesive Form
- Multi-Substrate Assembly Fixturing
- Low-Viscosity Adhesive Application
Product Description
LOCTITE® 495 Instant Adhesive is a one-part, low-viscosity ethyl cyanoacrylate adhesive designed for rapid bonding of plastics, rubbers, and metals. Atmospheric moisture initiates the cure, allowing closely fitted components to fixture within seconds depending on the substrate, bond gap, humidity, and ambient conditions.
Key features
- One-part cyanoacrylate: Requires no mixing and cures through exposure to atmospheric moisture.
- Rapid fixture: Typical fixture times range from less than 5 seconds to 15 seconds on documented substrates at 22 °C and 50% relative humidity.
- Low-viscosity liquid: Typical cone-and-plate viscosity is 20 to 45 mPa·s at 25 °C and a shear rate of 3,000 s-1.
Applications / Suitable for
- Bonding closely fitted plastic components
- Bonding rubber and elastomer components
- Rapid bonding of metal components
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
As-supplied / before-processing properties
Typical properties of the uncured adhesive. Values are not guaranteed production specifications unless identified as controlled limits.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical type | Ethyl cyanoacrylate | — | As supplied |
| Appearance | Transparent, colorless to straw-colored liquid | — | Uncured |
| Specific gravity | 1.1 | — | At 25 °C |
| Viscosity | 20–45 | mPa·s (cP) | Cone and plate; 25 °C; shear rate 3,000 s-1 |
| Viscosity | 20–60 | mPa·s (cP) | Brookfield LVF; spindle 1; 30 rpm; 25 °C |
After-processing / final-state properties
Typical adhesive-strength results after curing for 24 hours at 22 °C. Performance depends on substrate, preparation, bond geometry, cure conditions, and test configuration.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Lap shear strength — steel | 14.2 | N/mm² | ISO 4587; grit-blasted steel; 24 hours at 22 °C |
| Lap shear strength — aluminum | 10.8 | N/mm² | ISO 4587; grit-blasted aluminum; 24 hours at 22 °C |
| Lap shear strength — ABS | 7.9 | N/mm² | ISO 4587; 24 hours at 22 °C; substrate failure reported |
| Lap shear strength — PVC | 8.7 | N/mm² | ISO 4587; 24 hours at 22 °C; substrate failure reported |
| Tensile strength — Buna-N | 13.7 | N/mm² | ISO 6922; 24 hours at 22 °C |
