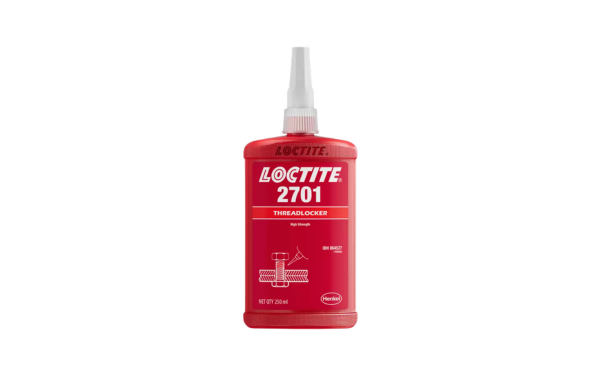

LOCTITE 2701
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- High-Strength Thread Retention
- Low-Viscosity Threadlocking Application
- Fluorescent Under UV Light
Product Description
LOCTITE® 2701 is a high-strength anaerobic threadlocking adhesive designed for the permanent locking and sealing of threaded metal fasteners. The one-component acrylic formulation cures in the absence of air between closely fitting metal surfaces, preventing loosening and leakage caused by shock and vibration. LOCTITE 2701 is particularly well suited for inactive metal substrates such as stainless steel and plated metals, and for applications requiring maximum resistance to hot oils. The low-viscosity adhesive penetrates threads efficiently while providing strong locking performance, excellent chemical resistance and long-term durability in demanding industrial environments.
Key Features & Benefits
- High-strength threadlocker for permanent fastener locking and sealing.
- Designed for inactive metals including stainless steel and plated surfaces.
- Excellent resistance to hot oils and industrial fluids.
- Prevents loosening caused by vibration, shock and dynamic loading.
- Low-viscosity formulation promotes efficient thread penetration.
- One-component anaerobic adhesive requiring no mixing.
- Fluorescent under UV light for inspection and quality control.
Recommended Applications
- Permanent locking of threaded fasteners.
- Sealing threaded assemblies against leakage.
- Fasteners subjected to shock and vibration.
- Assemblies operating in hot-oil environments.
- Industrial machinery, pumps, gearboxes and maintenance applications.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-Supplied / Before-Processing Properties
| Property | Value | Unit | Condition |
|---|---|---|---|
| Technology | Acrylic | — | Anaerobic threadlocker |
| Chemical Type | Dimethacrylate Ester | — | One-component |
| Color | Green | — | Liquid |
| Strength Classification | High | — | Threadlocking adhesive |
| Viscosity | 500 - 900 | mPa·s | Brookfield RVT, 25°C |
| Specific Gravity | 1.08 | — | 25°C |
| Density | 1.10 | g/ml | 20°C |
| Flash Point | 100 | °C | Closed cup |
After-Processing / Final-State Properties
| Property | Value | Unit | Condition / Method |
|---|---|---|---|
| Breakaway Torque | 26 - 50 | N·m | ISO 10964, M10 black oxide steel nuts and bolts |
| Prevail Torque | ≥15 | N·m | ISO 10964, M10 black oxide steel nuts and bolts |
| Breakloose Torque | 30 - 60 | N·m | ISO 10964, pre-torqued to 5 N·m |
| Maximum Prevail Torque | 36 - 60 | N·m | ISO 10964, pre-torqued to 5 N·m |
| Compressive Shear Strength | 18 - 30 | N/mm² | ISO 10123, steel pins and collars |
| Coefficient of Thermal Expansion | 100 × 10⁻⁶ | K⁻¹ | ISO 11359-2 |
| Thermal Conductivity | 0.1 | W/(m·K) | ISO 8302 |
| Specific Heat | 0.3 | kJ/(kg·K) | Typical cured value |
