LOCTITE 084
Harmonization Code : 3824.99.92.97 | Prepared binders for foundry molds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included: other : other : other
Main features
- Low-Viscosity Thread Application
- 6 N m Breakaway Torque
- Medium-Strength Hand-Tool Removal
Product Description

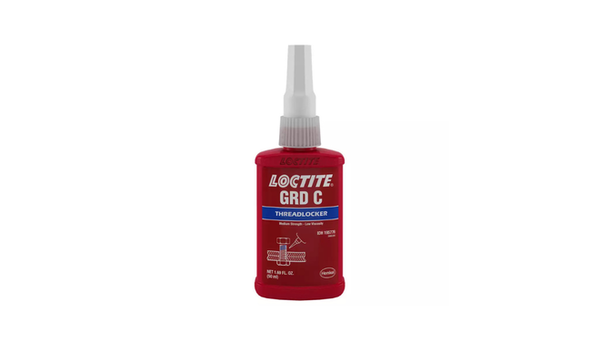

LOCTITE 84 Medium-Strength Threadlocker is a one-part blue low-viscosity anaerobic liquid for locking and sealing fine-threaded nuts, bolts, and studs. Its 10 to 25 mPa s viscosity supports application to close-fitting threads and preassembled through-hole joints, while the medium-strength cured bond remains removable with ordinary hand tools. The material requires no mixing and cures after air is excluded within the threaded assembly. After 24 hours at 22 deg C, it develops 6 N m breakaway torque on 3/8 x 24 grade 2 steel fasteners under ISO 10964 testing. Applications include fine-threaded metal assemblies requiring secure retention and planned disassembly.
Key features
- 10 to 25 mPa s Viscosity: The low-viscosity liquid supports application to fine threads and preassembled through-hole joints.
- 6 N m Breakaway Torque: Typical breakaway torque is measured after 24 hours at 22 deg C on grade 2 steel fasteners.
- Hand-Tool Removable Strength: The medium-strength cured assembly can be removed with ordinary hand tools.
Applications / Suitable for
- Fine-threaded nuts, bolts, and studs
- Preassembled threaded parts with through holes
- Metal fastener locking and sealing
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical uncured and storage properties for LOCTITE 84.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Blue liquid | Uncured material; LMS | |
| Components | One | component | No mixing required |
| Viscosity | 10 to 25 | mPa s | Cannon-Fenske; ISO 3104; uncured material |
| Specific gravity | 1.05 | At 25 deg C; uncured material | |
| Cure mechanism | Anaerobic | Threadlocking application | |
| Optimal storage | 8 to 21 | deg C | Unopened container in a dry location |
After-processing / final-state properties
Typical cured-material and threaded-fastener results for LOCTITE 84.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Breakaway torque | 6 | N m | After 24 hours at 22 deg C; ISO 10964; 3/8 x 24 grade 2 steel nuts and bolts |
| Prevail torque | 4.5 to 11.3 | N m | After 24 hours at 22 deg C; ISO 10964; 3/8 x 24 grade 2 steel nuts and bolts |
| Dielectric breakdown strength | 9.8 | kV/mm | IEC 60243-1; cured material |
| Thermal conductivity | 0.1 | W/(m K) | ISO 8302; cured material |
| Coefficient of thermal expansion | 100 x 10^-6 | K^-1 | ISO 11359-2; cured material |
| Specific heat | 0.3 | kJ/(kg K) | Cured material |
