Main features

VOC-Free Water-Based Fluxing
Self-Neutralizing Post-Solder Residue
Water-Only Residue Removal

Product Description

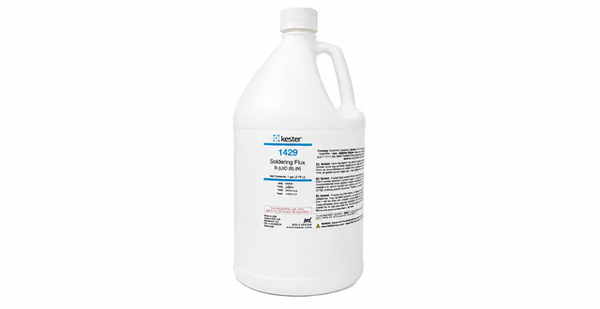

Kester 1429 VOC-Free Organic Water-Soluble Liquid Flux is a water-based, high-activity flux for tinning, dipping, and soldering processes that require water-removable residues. Its self-neutralizing chemistry develops a neutral, non-corrosive residue when properly heated, while adjusted surface tension supports solder flow and control of icicling and bridging. The ORH1 flux contains a typical 18% solids and can be applied by spray, dip, or wave methods. It may be used without preheating and can be diluted for supported applications. Applications include tinning and dipping operations and soldering tasks where rosin flux is too inactive and inorganic acid flux is too corrosive.

Key features

VOC-Free Water-Based Flux: Water-based ORH1 chemistry provides high activity without an organic-solvent carrier.
Water-Removable Residue: Residue can be removed with water without neutralizers, saponifiers, or detergents.
Self-Neutralizing Chemistry: Proper heating develops a neutral, non-corrosive residue with no SIR degradation.

Applications / Suitable for

Tinning and dipping operations
Spray, dip, or wave fluxing
Water-wash soldering processes

TDS, SDS & Technical Documents

Technical Specifications

General Properties

Solids

18 %

Specific Gravity

1.061 ± 0.010 @25°C

Additional Information

Technical properties

As-supplied / before-processing properties

Typical liquid-flux properties and handling limits before soldering.

Property	Value	Unit	Method / condition
Flux classification	ORH1		J-STD-004
Specific gravity	1.061 +/- 0.010		At 25 deg C
Typical solids	18	%	J-STD-004; IPC-TM-650 Method 2.3.34
Chloride and bromides	2.3	%	IPC-TM-650 Method 2.3.35
Minimum storage temperature	4	deg C	Water-based formulation
Shelf life	2	years	Stored at 4 to 25 deg C
