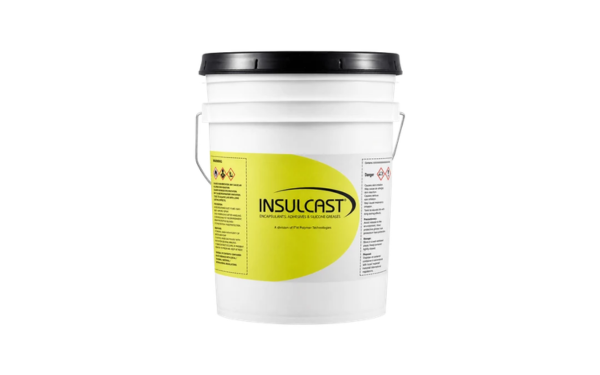

INSULCAST 116 FR-FC
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Equal-Ratio Production-Line Epoxy Potting
- 9,800 cP Mixed Viscosity
- UL 94 V-0 Classification
Product Description
INSULCAST® 116 FR-FC Epoxy Potting Compound is a two-component, equal-ratio epoxy potting and casting compound designed for production-line mixing and automatic dispensing. The black Part A and cream Part B may be mixed 1:1 by weight or volume, producing a typical mixed viscosity of 9,800 cP and a 30 to 45-minute pot life. The system cures at room temperature or through an accelerated heat schedule and is recognized for UL 94 V-0 flammability. Typical cured properties include Shore D 75 hardness, 65.5 MPa tensile strength, 0.65 W/m·K thermal conductivity, and 420 V/mil dielectric strength.
Key features
- Equal-ratio production system: The two components mix 1:1 by weight or volume for manual or automated dispensing.
- 30 to 45-minute pot life: Typical mixed viscosity is 9,800 cP.
- Flame-retardant cured epoxy: The system is recognized for UL 94 V-0 and has 0.65 W/m·K thermal conductivity.
Applications / Suitable for
- Production-line electronic potting
- Automatic dispensing and casting
- Flame-retardant electrical insulation
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical as-supplied or processing-state values unless otherwise stated. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Part A color | Black | N/A | As supplied |
| Part B color | Cream | N/A | As supplied |
| Part A viscosity | 7,200 | cP | ASTM D2393 |
| Part B viscosity | 11,000 | cP | ASTM D2393 |
| Mix ratio | 1:1 | ratio | By weight or volume |
| Mixed viscosity | 9,800 | cP | Typical |
| Pot life | 30 to 45 | min | 100 g mass |
| Cure options | 16 to 24 h at 22°C; 2 h at 22°C plus 2 h at 55°C | N/A | Documented schedules |
After-processing / final-state properties
Typical cured or final-state values under the stated system and test conditions. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Hardness | 75 | Shore D | ASTM D2240 |
| Compressive strength | 79.3 | MPa | ASTM D695 |
| Tensile strength | 65.5 | MPa | ASTM D638 |
| Flexural strength | 69.0 | MPa | ASTM D790 |
| Tensile elongation | 5 to 7 | % | ASTM D638 |
| Thermal conductivity | 0.65 | W/m·K | Typical cured value |
| Dielectric strength | 420 | V/mil | ASTM D149 |
| Flammability classification | V-0 | UL 94 | Documented recognition |
