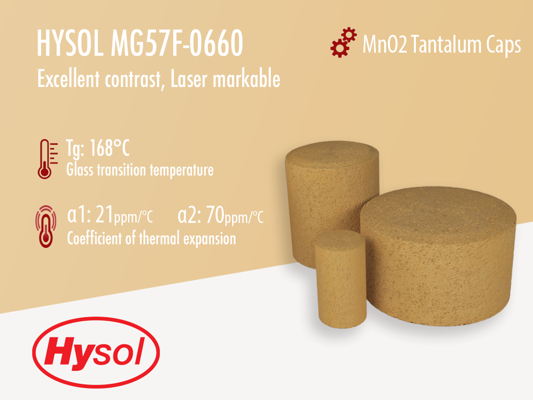

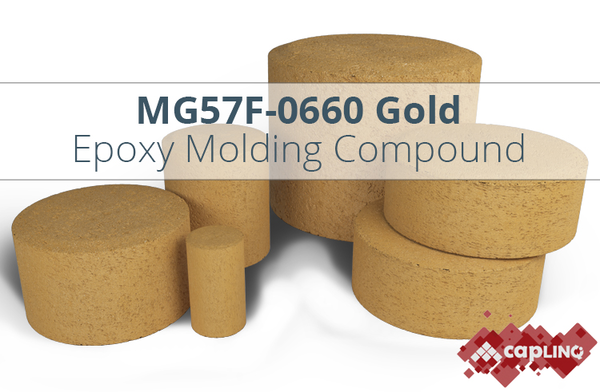

Hysol MG57F-0660 | Gold Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Gold epoxy mold compound
- Laser Markable
- Designed for MnO2 Tantalum Capacitors
Product Description
Hysol MG57F-0660 is a gold-colored, environmentally friendly “green” (no bromine/antimony or phosphorous) molding compound. It has been designed especially for use in high volume molding of Manganese Oxide MnO2 tantalum capacitors. It offers excellent moldability with faster cycle times than most traditional epoxy based encapsulants and is especially recommended for automold applications.
Hysol MG57F-0660 also offers excellent contrast with currently available laser marking equipment making it ideal for laser marking product information on the component.
Curing Time
- 20 to 35 seconds @170°C
- 30 to 60 seconds @150°C
Post Cure
- 2 hours @150°C
HYSOL MG57F-0660
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Chemical Properties
Curing Conditions
Additional Information
{tab=Applications}
Typical applications and uses of {product_name} include:
Technical Datasheets for {product_name}TDS (English) |
{tab=Packaging Details}
|
The following information is specifically related to each unit of measure of {product_name}. If you which to compare this to other product sizes, click on the respective product from the list above and check here for values specific to that product. These values are taken from our internal database and are used in the calculation of the gross weight and packaging dimensions of the goods during shipping. You can use these values to approximate delivery charges using your own carrier. |
