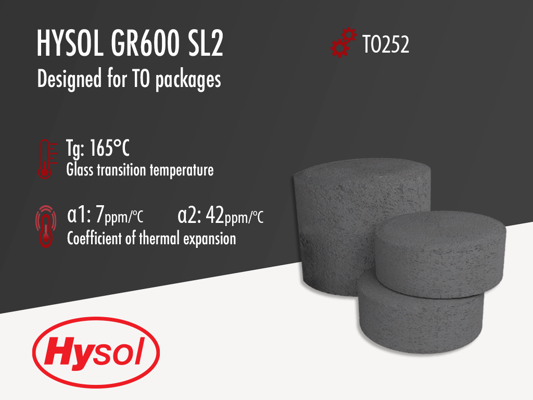

Hysol GR600 SL2| Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- High reliability
- High power applications
- Good electrical performance
Product Description
Hysol GR600 SL2 is a halogen free, black, silica filled (87% filler weight) semiconductor grade epoxy molding compound designed for TO packages. This low stress, low moisture absorption product is a commercial success with many uses on TO applications.
Hysol GR600 SL2 is a green, heat curable epoxy molding compound that can be used in semiconductor packages such as TO252. Furthermore, it meets UL 94 V-0 flammability at 1/8 inch thickness.
HYSOL GR600
1. Select Product Form
2. Select Pellet Size
3. Select Pellet Weight
4. Select Package Size
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks Shipping in 12 weeks Shipping in 12 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
ColorColor
BlackFiller ContentFiller Content
87 %Specific GravitySpecific Gravity
2.03Electrical Properties
Volume ResistivityVolume Resistivity
14400000000000000 Ohms⋅cmChemical Properties
Moisture absorptionMoisture absorption
0.30 %Physical Properties
Spiral Flow @ 175°CSpiral Flow @ 175°C
83 cmThermal Properties
Glass Transition Temperature (Tg)Glass Transition Temperature (Tg)
165 °CCuring Conditions
Transfer PressureTransfer Pressure
40 - 85 kg/cm2Transfer TimeTransfer Time
5 - 15 s
