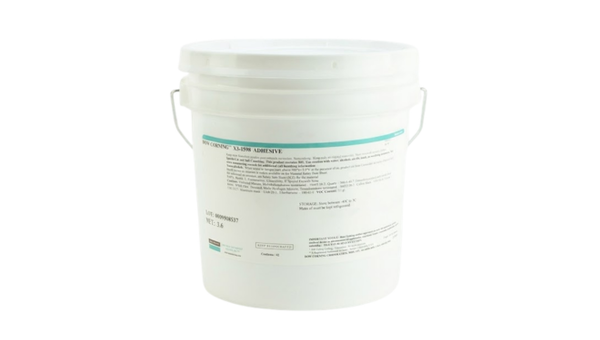

DOWSIL X3-1598
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- UV-Indicator Flowable Silicone Adhesive
- 60-Minute 125 deg C Cure
- Primerless Aluminum Bonding
Product Description
DOWSIL™ X3-1598 Adhesive is a one-part, black, flowable heat-cure silicone adhesive with high tensile strength and a UV indicator for automated inspection. The ready-to-use material contains no added solvents and may be applied by manual or automated needle dispensing. Documented applications include sealing lids and housings, attaching baseplates, gasketing, connector sealing, engine and transmission controllers, ABS assemblies, and lighting. Typical viscosity is 86,550 cP, with cure schedules of 60 minutes at 125°C or 30 minutes at 150°C. Typical lap shear adhesion to unprimed aluminum is 5.8 MPa.
Key features
- UV inspection indicator: The black adhesive includes an indicator for automated inspection.
- One-part heat cure: Documented cure schedules are 60 minutes at 125°C or 30 minutes at 150°C.
- Strong aluminum adhesion: Typical unprimed lap shear adhesion to aluminum is 5.8 MPa.
Applications / Suitable for
- Sealing lids, housings, and connectors
- Attaching baseplates and gasketing
- Engine, transmission, ABS, and lighting assemblies
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical as-supplied or processing-state values unless otherwise stated. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Product form | One-part flowable adhesive | N/A | As supplied |
| Color | Black | N/A | As supplied |
| Viscosity | 86,550 | cP | Typical |
| Heat-cure option | 60 | min | At 125°C |
| Heat-cure option | 30 | min | At 150°C |
| Shelf life | 12 | months | At 5°C |
After-processing / final-state properties
Typical cured, installed, or in-use values under the stated conditions. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Cured specific gravity | 1.32 | N/A | Typical cured value |
| Lap shear adhesion | 5.8 | MPa | Unprimed aluminum |
| Dielectric strength | 22 | kV/mm | Typical cured value |
