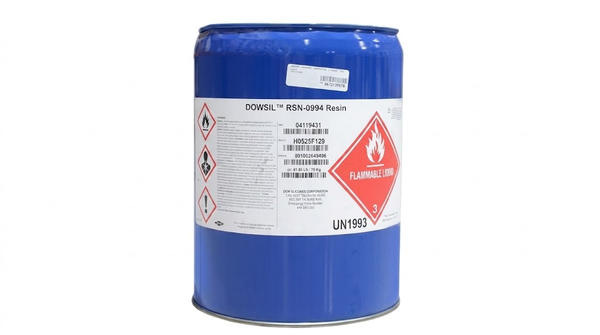

DOWSIL RSN-0994
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Heat-Resistant Electrical Varnish
- At Least 49% Solids
- AIEE Class 220 deg C Insulation
Product Description
DOWSIL™ RSN-0994 Resin is a light-straw silicone electrical varnish in xylene for coating glass cloth and sleeving and for bonding mica-glass combinations. The material is documented as heat resistant, water repellent, and suitable as an AIEE Class 220°C insulating material. Glass cloth coated with the varnish retains flexibility and electric strength during extended high-temperature exposure under the stated test conditions. Typical as-supplied properties include at least 49% solids content, 80 to 150 mm²/s viscosity at 25°C, and 1.00 to 1.02 relative density.
Key features
- Electrical insulating varnish: The silicone resin is documented for glass cloth, sleeving, and mica-glass bonding.
- Heat and water resistance: The material is identified as an AIEE Class 220°C insulating material.
- Controlled solvent-borne properties: Typical data include at least 49% solids and 80 to 150 mm²/s viscosity at 25°C.
Applications / Suitable for
- Coating glass cloth
- Coating electrical sleeving
- Bonding mica-glass combinations
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical as-supplied or processing-state values unless otherwise stated. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Physical nature | Liquid | N/A | As supplied |
| Color | Light straw | N/A | As supplied |
| Solids content | ≥49 | % | Typical minimum |
| Viscosity | 80 to 150 | mm²/s | At 25°C |
| Relative density | 1.00 to 1.02 | N/A | At 25°C |
| Solvent | Xylene | N/A | As supplied |
| Flash point | 27 | °C | Closed cup |
After-processing / final-state properties
Typical cured, installed, or in-use values under the stated conditions. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Heat endurance, flex life | 1,000 | h | At 250°C |
| Heat endurance, craze life | 10,000 | h | At 250°C |
| Heat endurance, flex life | 400 | h | At 300°C |
| Heat endurance, craze life | 750 | h | At 300°C |
| Thermal life | 9,000 | h | At 250°C |
| Thermal life | 3,000 | h | At 275°C |
| Thermal life | 800 | h | At 300°C |
