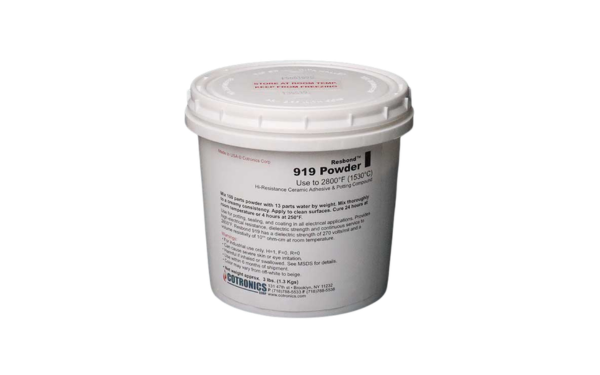

COTRONIC 919-1
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Electrically Insulating Ceramic Adhesive
- Up to 2800 deg F Service
- Combined Bonding, Sealing, and Potting
Product Description
Resbond™ 919 Electrically Resistant Adhesive is a two-part, room-temperature curing ceramic adhesive formulated to provide exceptional electrical insulation in high-temperature environments. Based on Cotronics' proprietary MgO-ZrO ceramic binder system, it offers a continuous service temperature of up to 2800°F (1538°C), 270 volts/mil dielectric strength, and 1011 ohm-cm volume resistivity. The paste consistency allows easy mixing and application, curing into a durable ceramic bond that resists thermal cycling, corrosion, chemicals, and harsh operating conditions. It is ideal for electrically insulating, bonding, sealing, coating, and potting components used in industrial heating systems, sensors, instrumentation, and other high-temperature electrical applications. :contentReference[oaicite:0]{index=0}
Key features
- Exceptional electrical insulation – provides 270 volts/mil dielectric strength and high volume resistivity to protect electrical components operating under high voltage and elevated temperatures.
- Ultra-high temperature capability – designed for continuous operation at temperatures up to 2800°F (1538°C).
- Ceramic-based adhesive – formulated using proprietary MgO-ZrO ceramic binders that maintain electrical insulation even after prolonged high-temperature exposure.
- Room-temperature curing – cures at ambient conditions without requiring high-temperature processing, with optional heat acceleration when desired.
- Chemical and corrosion resistance – provides durable protection against harsh environments, oxidation, and thermal cycling.
- Easy paste application – supplied as a two-component paste that mixes easily and can be applied for bonding, sealing, coating, or potting applications.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Additional Information
Applications
Resbond™ 919 is designed for high-temperature electrical insulation where ceramic bonding performance, dielectric strength, and long-term reliability are required.
- Heating elements and furnace equipment – bonds and electrically insulates heating coils, furnace elements, and high-temperature resistors.
- Thermocouples and instrumentation – suitable for sealing, potting, and protecting thermocouples, sensors, ignitors, and measurement devices.
- Electrical insulation – bonds electrode rods into ceramic tubes and protects against voltage breakdown in demanding environments.
- High-temperature sealing and coating – seals light fixtures, ceramic assemblies, fiberglass-insulated wires, and electrical components exposed to heat and corrosion.
- Industrial process equipment – ideal for applications requiring electrically insulating ceramic bonds in thermal processing, power generation, and industrial manufacturing.
Additional information
- Two-component ceramic adhesive – supplied as a paste with a 100:13 mix ratio for convenient preparation.
- Maintains electrical properties at high temperature – proprietary ceramic binders retain dielectric strength and insulation performance during prolonged heat exposure.
- Excellent thermal cycling resistance – formulated to minimize cracking and maintain bond integrity through repeated heating and cooling cycles.
- Multi-purpose ceramic solution – suitable for bonding, coating, sealing, and potting electrical components operating in extreme environments.
- Designed for industrial reliability – widely used in heating equipment, furnaces, sensors, ignitors, instrumentation, and other high-temperature electrical assemblies.
