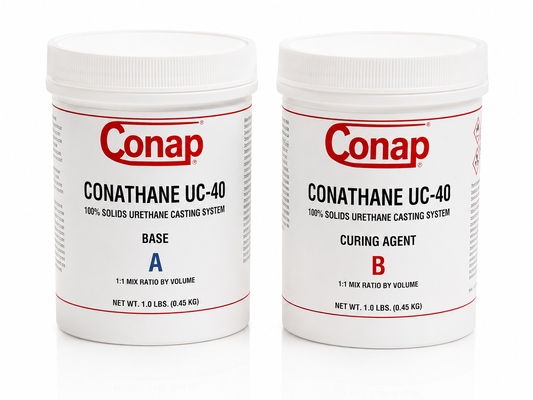

CONATHANE UC-40

Main features

Ambient-Cure 100% Solids Casting
High-Impact Dimensionally Stable Castings
Thermoplastic-Like Prototype Finish

Product Description

CONATHANE UC-40 is a two-component, unfilled, 100% solids polyurethane casting system that cures at room temperature. It is intended for tough, high-impact-resistant, dimensionally stable castings and for prototypes that require the feel and appearance of a thermoplastic. The system supports hand-mix, meter-mix, and vacuum casting approaches, giving processors options for bench or controlled production workflows. Its ambient-cure format is useful for fixtures, models, and prototype parts where an unfilled urethane casting resin is preferred.

Key features

Ambient-cure 100% solids system: The two-component unfilled urethane cures at room temperature.
Tough, stable castings: The material is used for high-impact-resistant, dimensionally stable cast parts.
Thermoplastic-like prototypes: It supports prototypes requiring the feel and appearance of a thermoplastic.

Applications / Suitable for

Tough, high-impact-resistant castings
Dimensionally stable prototype parts
Thermoplastic-like models and cast components

TDS, SDS & Technical Documents

Conathane UC-40_122021

English (Technical Data Sheet (TDS))

Technical Specifications

General Properties

Component System

Two

Electrical Properties

Dielectric Strength

24.80 kV/mm

Volume Resistivity

5.2 x 10^15 Ohms⋅cm

Additional Information

Technical properties

As-supplied / before-processing properties

Product and processing characteristics for the two-component system. Values are not specifications.

Property	Value	Unit	Method / condition
System components	Two	components	Part A and Part B
Material type	Unfilled polyurethane		100% solids casting system
Cure mode	Room-temperature cure		Two-component mixed system
Processing formats	Hand mix; meter mix; vacuum casting		Before cure
