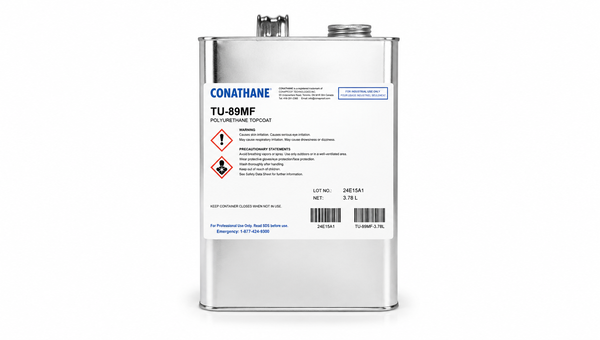

CONATHANE TU-89MF

Main features

15 to 25-Minute Working Window
22.1 MPa Cured Tensile Strength
Flexible Cured Material

Product Description

CONATHANE® TU-89MF Polyurethane is a two-component amber polyurethane casting material for tough, flexible elastomeric parts. The system is documented for acoustic barriers, belt repair, bushings, diaphragms, gaskets, molds, pulleys, washers, and wheels. It uses a 100:53 resin-to-hardener ratio by weight and has a typical pot life of 15 to 25 minutes at 25°C. Typical cured properties include Shore A 89 hardness, 22.1 MPa tensile strength, 600% elongation, 74.4 kN/m tear strength, and resistance to abrasion, chemicals, and solvents.

Key features

Tough cast elastomer: Typical cured tensile strength is 22.1 MPa with 600% elongation.
Controlled two-part processing: The system uses a 100:53 mix ratio by weight and has a 15 to 25-minute pot life at 25°C.
Broad industrial use: Documented applications include wheels, gaskets, bushings, molds, belts, and acoustic barriers.

Applications / Suitable for

Wheels, pulleys, and belt repair
Bushings, diaphragms, gaskets, and washers
Molds, tools, and acoustic barriers

TDS, SDS & Technical Documents

Technical Specifications

No specifications available.

Additional Information

Technical properties

As-supplied / before-processing properties

Typical as-supplied or mixed-state values unless otherwise stated. These values are not sales specifications.

Property	Value	Unit	Method / condition
Appearance	Amber	N/A	As supplied
Material form	Liquid	N/A	As supplied
Specific gravity	1.08	N/A	ASTM D792
Mix ratio by weight	100:53	parts	Resin : hardener
Mix ratio by volume	100:50	parts	Resin : hardener
Pot life	15 to 25	min	At 25°C
Processing method	Casting	N/A	Documented method
