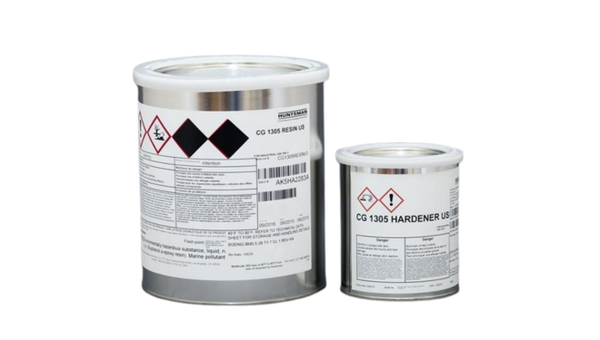

CG 1305
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Medium Density Syntactic
- High-Strength Structural Bonding
- Pourable Bonding Material
Product Description
Huntsman CG-1305 Resin/Hardener Epoxy Syntactic is a medium-density, pourable epoxy syntactic system developed for aircraft production and industrial applications that require a combination of high strength and low weight. The two-component system is designed for reinforcing high-stress areas in honeycomb structures and for potting applications. CG-1305 offers good handling characteristics, a density of 0.90 g/cc maximum when mixed, and extended working time with a gel time exceeding 60 minutes at 25°C. The material is qualified to BMS 5-28 Type 7 Class 1 and develops compressive strengths up to 9.0 ksi after elevated-temperature cure schedules, making it suitable for structural reinforcement and lightweight filling applications.
Key features
- Medium-density syntactic epoxy: Combines low weight and structural strength for aerospace and industrial reinforcement applications.
- Pourable processing characteristics: Mixed viscosity of approximately 21,500 cP and gel time greater than 60 minutes at 25°C support handling and placement.
- BMS-qualified performance: Qualified to BMS 5-28 Type 7 Class 1 and capable of achieving compressive strengths up to 9.0 ksi after cure.
Applications / Suitable for
- Reinforcing high-stress areas in honeycomb structures
- Aircraft production assemblies
- Potting applications
- Lightweight structural filling applications
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
As-supplied / before-processing properties
Representative handling and processing properties of the mixed CG-1305 epoxy syntactic system.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Off-white | - | Mixed material |
| Density | 0.90 max. | g/cc | ASTM D792, mixed |
| Viscosity | 21,500 | cP | 25°C, ASTM D2196 |
| Gel Time | >60 | min | 60 g mass at 25°C, ASTM D2471 |
| Mix Ratio | 100:20 | wt. | Resin : Hardener |
| Shelf Life | 12 | months | Unopened containers at 25°C |
After-processing / final-state properties
Typical cured-property data. Values are not intended as specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Compressive Strength | 8.8 | ksi | ASTM D695, RT gel + 90 min @ 127°C |
| Compressive Modulus | 420 | ksi | ASTM D695, RT gel + 90 min @ 127°C |
| Lap Shear Strength | 1800 | psi | Al/Al, ASTM D1002, RT gel + 90 min @ 127°C |
| Weight Gain | 0.50 | % | 24 h distilled water immersion, ASTM D543 |
| Flammability Burn Rate | 3 max. | in./min | 12-second vertical burn |
