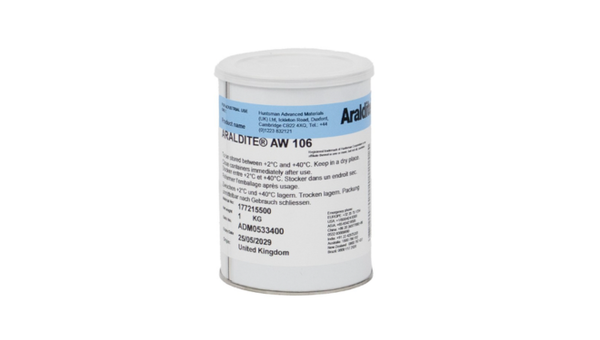

ARALDITE AW106
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Multi-Material Epoxy Bonding
- Long Adhesive Working Time
- Electrically Insulating Epoxy
Product Description
ARALDITE® AW 106 Resin / Hardener HV 953U is a two-part, multi-purpose epoxy adhesive for bonding metals, ceramics, wood, vulcanized rubber, foams, and plastics. The viscous system has a 100:80 mix ratio by weight and a long working time for manual application by spatula or stiff brush, as well as mechanical mixing and coating equipment. It cures at temperatures from 20°C to 180°C and develops shear and peel strength for bonded assemblies exposed to static or dynamic loading. The cured adhesive is electrically insulating, supporting bonding applications where electrical isolation is also required.
Key features
- Multi-material bonding: Suitable for metals, ceramics, wood, rubber, foams, and plastics.
- Long working time: Provides a typical 2-hour pot life for a 4 fl oz mixed mass at 25°C.
- Electrically insulating: Combines structural bonding performance with dielectric properties.
Applications / Suitable for
- General-purpose assembly bonding
- Metal, ceramic, and wood bonding
- Plastic, foam, and vulcanized-rubber assemblies
- Bonded assemblies requiring electrical insulation
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Electrical Properties
Mechanical Properties
Additional Information
As-supplied / before-processing properties
Typical values for the separate components and mixed adhesive. Values are not product specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Resin appearance | Creamy, viscous liquid | — | Visual |
| Hardener appearance | Amber liquid | — | Visual |
| Mix ratio | 100:80 | By weight | Resin:hardener |
| Mix ratio | 100:100 | By volume | Resin:hardener |
| Mixed viscosity | 54,000 | cP | ASTM D-2393 at 25°C |
| Pot life | 2 | Hours | 4 fl oz mixed mass at 25°C |
After-processing / final-state properties
Typical cured-material values. Performance in a bonded assembly depends on substrate, preparation, bondline, cure schedule, and test conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Ultimate tensile strength | 33 | MPa | ASTM D-638 |
| Elongation | 9 | % | ASTM D-638 |
| Glass-transition temperature | 63 | °C | DMA, ASTM D-4065 |
| Hardness | 80 | Shore D | ASTM D-2240 |
| Thermal conductivity | 0.22 | W/m·K | Cured adhesive |
| Dielectric strength | 400 | V/mil | Cured adhesive |
