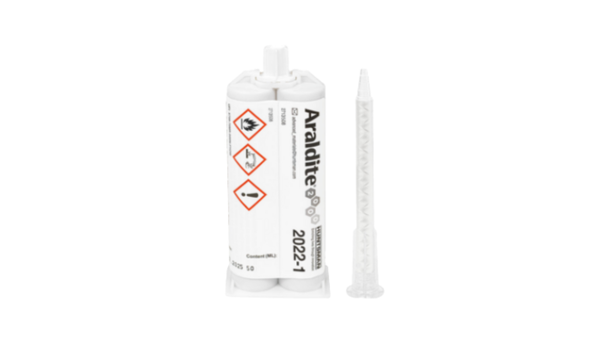

ARALDITE 2022-1

Main features

1 MPa Lap Shear
Thixotropic Gap-Filling Control
Multi-Substrate Bonding Capability

Product Description

ARALDITE 2022-1 is a two-component, room-temperature-curing, toughened methacrylate structural adhesive for fast assembly on a wide range of substrates, including materials that can be difficult to bond. Supplied at a 1:1 mix ratio by weight and volume, it forms a pale-yellow, thixotropic adhesive with a typical pot life of approximately 10 minutes at 25°C. The system combines rapid lap-shear strength development with gap-filling capability up to 4 mm and can be used effectively with limited surface preparation, although clean, mechanically abraded or chemically etched surfaces provide the strongest and most durable joints.

Key features

Fast strength development: Typical lap shear strength exceeds 1 MPa after 12 minutes and 10 MPa after 17 minutes at 23°C.
Controlled 1:1 processing: The mixed adhesive is thixotropic, has a typical 10-minute pot life at 25°C, and is available for cartridge mixing and dispensing.
Gap-filling multi-substrate bonding: Supports gaps up to 4 mm and is intended for a wide range of metal, plastic, and composite substrates.

Applications / Suitable for

Fast room-temperature assembly operations
Bonding evaluated metals, plastics, and fiber-reinforced composites
Joints requiring gap filling or tolerance of less-than-ideal pretreatment

TDS, SDS & Technical Documents

Technical Specifications

General Properties

Pot Life

10 minutes

Specific Gravity

Physical Properties

Viscosity (Part A)

32000 mPa.s

Viscosity (Part B)

30000 mPa.s

Additional Information

Technical properties

As-supplied and mixed properties

Component and mixed-adhesive properties. Values identified as approximate or typical are informational and are not guaranteed specifications.

Property	Value	Unit	Method / condition
Adhesive system	Two-component toughened methacrylate	—	Room-temperature-curing structural adhesive
Color	Part A: off-white; Part B: yellow; mixed: pale yellow	—	Visual
Specific gravity	Part A: 1.02; Part B: 0.96; mixed: ca. 1	—	As supplied
Viscosity at 25°C	Part A: 15-50; Part B: 10-50; mixed: thixotropic	Pa·s	A191 for component viscosity
Mix ratio, A:B	100:100 by weight and 100:100 by volume	parts	Equivalent to 1:1 by weight and volume
Pot life	ca. 10	min	100 g at 25°C
Time to peak exotherm	15-30	min	20 g; A159
Gap-filling capability	Up to 4	mm	Documented maximum gap-filling capability

Storage and Handling

Store ARALDITE 2022-1 for up to 18 months at 2-8°C in the original sealed containers. The product may be brought to room temperature before use, but total room-temperature exposure should not exceed six months, and long-term exposure above 25°C reduces shelf life. Clean tools with hot water and soap before adhesive residue cures. Consult the current Safety Data Sheet before handling.

Cured adhesive

Typical tensile properties

Typical average values for specimens cured for 16 hours at 40°C and tested at 23°C. These laboratory values are not guaranteed specifications or universal joint design values.

Property	Value	Unit	Method / condition
Tensile strength	45	MPa	ISO 527; cured 16 h at 40°C and tested at 23°C; typical average value
Tensile modulus	1700	MPa	ISO 527; cured 16 h at 40°C and tested at 23°C; typical average value
Elongation at break	>5	%	ISO 527; cured 16 h at 40°C and tested at 23°C; typical average value

Bonding and environmental performance evidence

ARALDITE 2022-1 has been evaluated in substrate-specific and environmental laboratory tests. Results apply to the stated materials, preparation, cure schedule, and test conditions and should not be treated as universal design allowables.

Metal-to-metal lap-shear evaluation

ISO 4587 lap-shear testing covers aluminum L165, steel 37/11, stainless steel V4A, galvanized steel, copper, and brass.

Cured 16 h at 40°C and tested at 23°C after sandblasting and degreasing. Steel and stainless-steel tests used a 0.25 mm adhesive joint.

Plastic and composite lap-shear evaluation

EP-GRP, UP-GRP, CFRP, SMC, ABS, PVC, PMMA, polycarbonate, and polyamide were evaluated. Substrate failure was observed for EP-GRP, UP-GRP, SMC, ABS, PVC, PMMA, and polycarbonate under the stated test conditions.

ISO 4587; cured 16 h at 40°C and tested at 23°C after light abrasion and isopropanol degreasing.

Thermal cycling on aluminum

A typical lap-shear strength of 27 MPa was measured after 100 thermal cycles from -30°C to 70°C.

ISO 4587 on aluminum; sandblasted and degreased; cured 16 h at 40°C. Each 6 h cycle used 2 h at -30°C, a 1 h ramp to 70°C, 2 h at 70°C, and a 1 h ramp to -30°C.

Environmental and temperature test coverage

Additional lap-shear evaluations cover immersion in industrial methylated spirits, lead-free petrol, ethyl acetate, 10% acetic acid, xylene, lubricating oil, paraffin, and water at 23°C, 60°C, and 90°C, together with tropical weathering, heat ageing at 70°C, and testing from -40°C to 100°C.

Test results are specific to the stated exposure media, duration, substrate preparation, cure schedule, and test temperature.

Next steps

Evaluate ARALDITE 2022-1 for your bonding process

Contact Krayden to discuss substrate preparation, bondline design, dispensing equipment, cure timing, and testing for your specific assembly. Product suitability should be confirmed under the actual materials, joint geometry, production conditions, and service environment.
