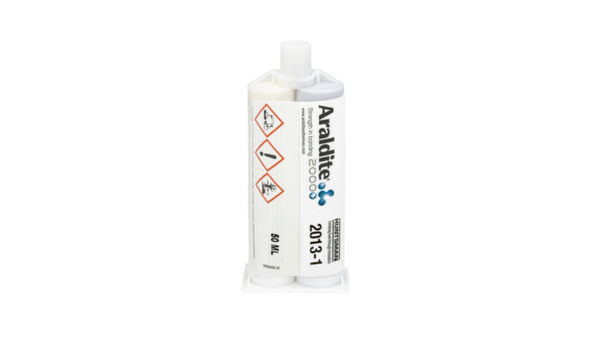

ARALDITE 2013-1
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Thixotropic Vertical-Surface Control
- 80 to 90-Minute Working Window
- 17 MPa Lap Shear
Product Description
ARALDITE® 2013-1 is a two-component, room-temperature-curing epoxy paste adhesive developed primarily for metal bonding and also suitable for ceramics, glass, rubbers, rigid plastics, and other commonly used materials. Its thixotropic, metal-colored paste supports vertical application and mixes at 100:60 by weight or 1:1 by volume. The mixed adhesive has a pot life of 80–90 minutes for a 100 g mass at 25°C, providing a practical assembly window. A 0.05–0.10 mm adhesive layer is recommended for greatest lap shear strength, with specified lap shear strength above 17 MPa at 23°C. The cured system combines high strength and toughness with documented environmental and chemical resistance.
Key features
- Vertical-application paste: Thixotropic rheology supports application on vertical joint surfaces.
- Controlled mixing and working time: Mixes 1:1 by volume and provides an 80–90 minute pot life for 100 g at 25°C.
- Documented strength and resistance: Specified lap shear strength exceeds 17 MPa at 23°C, with documented environmental and chemical resistance.
Applications / Suitable for
- Metal bonding
- Ceramic and glass bonding
- Rubber and rigid-plastic bonding
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
Component and mixed-material properties for ARALDITE® 2013-1. Preserve the stated component, quantity, temperature, and ratio basis when evaluating processing.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Part A appearance | Grey paste | — | Visual method A112; specified data |
| Part B appearance | Beige paste | — | Visual method A112; specified data |
| Mixed appearance | Grey paste | — | Visual method A112; specified data |
| Specific gravity | A: ca. 1.4; B: ca. 0.9; mixed: ca. 1.2 | — | As supplied |
| Part A viscosity | 380–720 | Pa·s | At 25°C |
| Part B and mixed rheology | Thixotropic | — | At 25°C |
| Pot life | 80–90 | min | 100 g mixed mass at 25°C |
| Mix ratio, A:B | 100:60 by weight; 1:1 by volume | — | Bulk mixing or cartridge format |
After-processing / final-state properties
Cured-property values are tied to the stated methods and cure conditions. Typical averages are technical information, not guaranteed design values.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Lap shear strength | >17 | MPa | At 23°C; method A501; specified data |
| Tensile strength | 22 | MPa | ISO 527; cure 16 h at 40°C; tested at 23°C; typical average |
| Tensile modulus | 1370 | MPa | ISO 527; cure 16 h at 40°C; tested at 23°C; typical average |
| Elongation at break | 1.8 | % | ISO 527; cure 16 h at 40°C; tested at 23°C; typical average |
| Glass transition temperature | 63.3 | °C | DMA; cure 16 h at 40°C; typical average |
