3M ES-2000
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Clear High-Gloss Edge Seal
- Controlled 1:1 Duo-Pak Application
- 25-Minute Tack-Free Time
Product Description

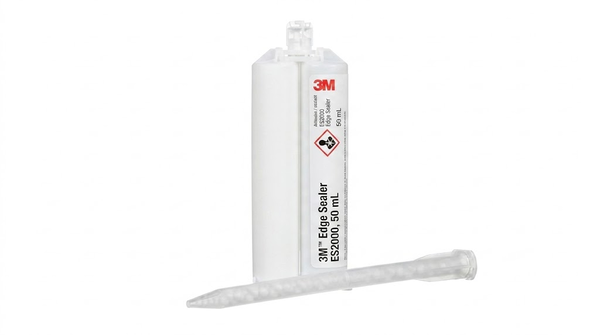

3M Edge Sealer ES2000 is a two-part clear urethane sealer for protecting exposed film and applique edges. It is supplied in 50 mL dual-syringe Duo-Pak cartridges at a 1:1 mix ratio and contains 100% solids. The sealer cures at ambient conditions to a clear, non-yellowing, high-gloss finish and becomes tack-free in about 25 minutes. Environmental exposure performance is supported by a typical yellowness index of 0.3 initially and 2.3 after 1,000 hours of ASTM G155 Cycle 1 exposure. The cured material reaches a typical Shore C hardness of 64 after 24 hours and 68 after 48 hours.
Key features
- Clear high-gloss edge seal: Cures at ambient conditions to a transparent, non-yellowing finish for visible film and applique edges.
- Controlled 1:1 cartridge dispensing: The 50 mL Duo-Pak system proportions both components through the 3M EPX applicator.
- Environmental exposure performance: A typical yellowness index of 2.3 after 1,000 hours of ASTM G155 Cycle 1 exposure supports long-term appearance assessment.
Applications
Applications include sealing exposed edges of aviation applique and compatible surface-protection films on specified aircraft paints, primers, and films.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
Values are typical and apply to the two-part ES2000 system.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Clear | Visual | |
| Part A viscosity | 30,000 to 40,000 | cP | ASTM D2196; Brookfield RVF No. 3 spindle at 1 rpm and 25 deg C |
| Part B viscosity | 1,000 to 5,000 | cP | ASTM D2196; Brookfield RVF No. 3 spindle at 10 rpm and 25 deg C |
| Solids content | 100 | % | Typical |
| Mix ratio | 1:1 | by volume | Duo-Pak cartridge |
| Package size | 50 | mL | Dual-syringe Duo-Pak cartridge |
After-processing / final-state properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Shore C hardness | 64 | ASTM D2240; after 24 hours | |
| Shore C hardness | 68 | ASTM D2240; after 48 hours | |
| Tack-free time | 25 | minutes | ASTM D5895 |
| Yellowness index | 0.3 | ASTM E313 | |
| Yellowness index after exposure | 2.3 | ASTM E313; after 1,000 hours per ASTM G155 Cycle 1 |
