3M 5413
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Kapton Polyimide Backing
- High-Temperature Silicone Adhesive
- -73 to 260 deg C Use Range
Product Description

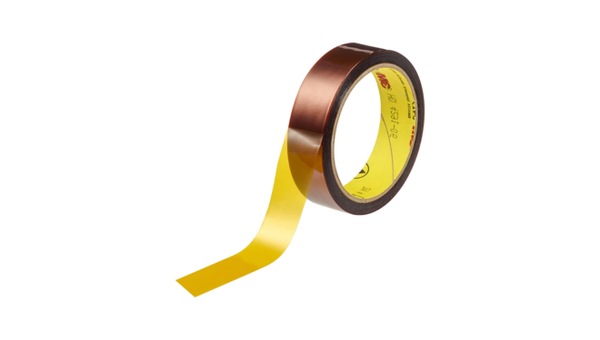

3M™ Polyimide Film Tape 5413 is an amber, 0.07 mm (2.7 mil) tape constructed with DuPont™ Kapton® polyimide film and silicone adhesive. It is used for printed circuit board solder masking and other high-temperature applications. The dimensionally stable polyimide backing does not soften at elevated temperatures and provides a release surface for high-temperature processing. The silicone adhesive supports high-temperature performance with reduced adhesive transfer, while the tape also provides documented flame-retardant, chemical-resistant, radiation-resistant, dielectric, and mechanical properties.
Key features
- High-temperature polyimide backing: DuPont™ Kapton® film remains dimensionally stable and does not soften at elevated temperatures.
- Silicone adhesive: Supports high-temperature processing while helping reduce adhesive transfer during removal.
- Documented functional performance: Provides flame retardancy, chemical and radiation resistance, and a typical dielectric strength of 7,000 volts.
Applications / Suitable for
- Masking gold fingers on printed circuit boards during wave soldering
- Masking gold fingers during solder-dip processing
- Providing a release surface during fabrication of parts cured at elevated temperatures
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Mechanical Properties
Thermal Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical construction, dimensional, and storage properties of 3M™ Polyimide Film Tape 5413. Values are representative and are not intended for specification purposes.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Backing | DuPont™ Kapton® polyimide film | — | Typical construction |
| Adhesive | Silicone | — | Typical construction |
| Color | Amber | — | Typical |
| Backing thickness | 1.0 (0.03) | mil (mm) | ASTM D-3652 |
| Total tape thickness | 2.7 (0.07) | mil (mm) | ASTM D-3652 |
| Standard roll length | 33 (36) | m (yd) | Standard roll format |
| Shelf life | 36 | months | From date of manufacture when stored in original cartons at 21°C (70°F) and 50% relative humidity |
After-processing / final-state properties
Typical mechanical, adhesion, electrical, thermal, and outgassing properties of 3M™ Polyimide Film Tape 5413. Values are representative and are not intended for specification purposes.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Adhesion to steel | 22 (24) | oz/in width (N/100 mm) | ASTM D-3330 |
| Tensile strength at break | 33 (578) | lb/in width (N/100 mm) | ASTM D-3579 |
| Elongation at break | 62 | % | ASTM D-3579 |
| Temperature-use range | -73 to 260 (-100 to 500) | °C (°F) | Typical temperature-use range |
| Dielectric strength | 7,000 | volts | ASTM D-149 |
| Total mass loss | 1.50 | % | Outgassing result; %TML |
| Collected volatile condensable material | 0.50 | % | Outgassing result; %CVCM |
| Flame retardancy | Pass | — | UL 510 product category OARC2; File E124809 |
