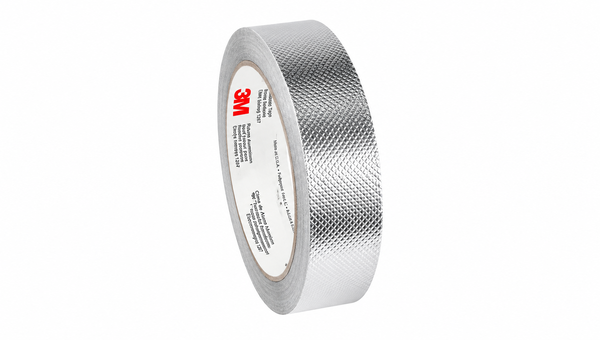

3M 1267
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Embossed Z-Axis Contact
- 64 dB Average Shielding
- Lined Die-Cut Handling
Product Description
3M Embossed Aluminum EMI Shielding Tape 1267 uses a 2.0 mil embossed, dead-soft aluminum backing coated with non-conductive acrylic adhesive in a 4.95 mil tape for grounding and EMI control. During installation, raised foil edges penetrate the adhesive and establish z-axis contact with the substrate; conductivity does not come from the adhesive itself. ASTM D4935 testing gives 64 dB average shielding effectiveness across 300 kHz to 2.5 GHz, while the stated MIL-STD-202 method limits electrical resistance to 0.0075 ohm/in2 maximum. A removable liner aids die-cut conversion and controlled placement in equipment, components, shielded rooms, and prototype assemblies.
Key features
- Embossed contact path: The aluminum embossing penetrates the non-conductive adhesive to establish foil-to-substrate electrical contact.
- Measured shielding performance: Average shielding effectiveness is 64 dB from 300 kHz to 2.5 GHz under ASTM D4935.
- Lined die-cut handling: The removable liner supports converting, die cutting, placement, and prototype work.
Applications
Applications include grounding and EMI shielding in equipment, components, and shielded rooms, plus die-cut parts, electrical prototyping, design work, and troubleshooting.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Mechanical Properties
Additional Information
As-supplied / before-processing properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Silver | - | Visual |
| Backing | Embossed aluminum foil | - | As supplied |
| Adhesive | Non-conductive acrylic | - | Non-corrosive pressure-sensitive adhesive |
| Backing thickness | 2.0 / 0.051 | mil / mm | Nominal |
| Total thickness | 4.95 +/- 0.65 / 0.126 | mil / mm | ASTM D1000 at 23 deg C |
| Shelf life | 5 | years | From manufacture; 10 to 27 deg C and less than 75% RH |
Final-state / after-processing properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Electrical resistance | 0.0075 | ohm/in2 | Maximum; MIL-STD-202 Method 307 at 5 psi over 1 in2 |
| Shielding effectiveness | 64 | dB | Average; ASTM D4935, 300 kHz to 2.5 GHz at 23 deg C |
| Adhesion to steel | 30.2 / 3.3 | oz/in / N/cm | Minimum; ASTM D1000 at 23 deg C |
| Breaking strength | 14 / 25 | lb/in / N/cm | Minimum; ASTM D1000 at 23 deg C |
| Flame retardancy | Pass | - | UL 510A, Category OARC2, File E17385 |
